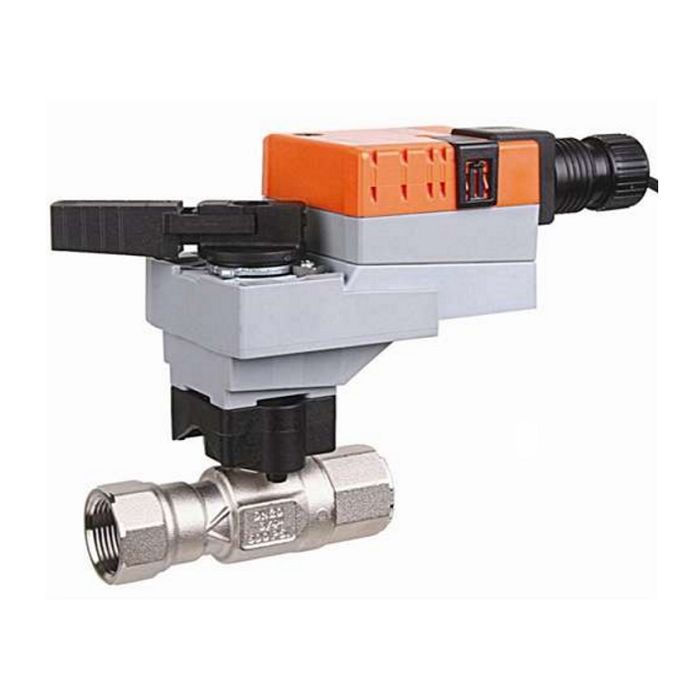

Belimo B224+LRB24-SR-T Characterized Control Valve Non-Spring 24V Modulating

Product Description

The Belimo B224+LRB24-SR-T is a characterized control valve designed for precision handling in HVAC systems. Its modulating non-spring return actuator and 2-way internal thread simplifies installation and operation for effective flow management.

• Efficient 90-degree rotation for quick opening and closing
• Engineered for use with both chilled and hot water systems up to 60% glycol
• Durable stainless steel trim ensures longevity and performance integrity

Product Highlights

This valve offers a controllable flow range, enhancing system responsiveness and stability. The external push button manual override provides practical utility in system checks and maintenance.

Product Information

Standard Information

• Control Type: DC 2...10 V
• Valve Size: 1 inch

Technical Specifications

• Electrical Connection: Terminals
• Power Consumption: 0.2 W (Holding), 1.5 W (Running)
• Voltage: AC/DC 24V
• Actuator Type: Non fail-safe
• Pattern: 2-way
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54, NEMA 2
