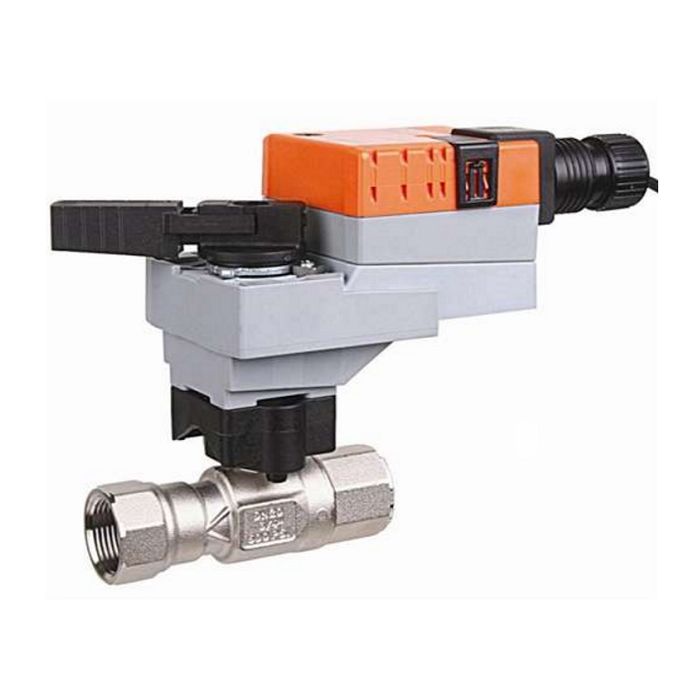

Belimo B224+LRB24-3-S Characterized Control Valve 24V 1 Inch 2 Way 19 Cv

Product Description

The Belimo B224+LRB24-3-S Characterized Control Valve is engineered for precise flow control. This model features a 1 inch valve size, operates via a 24V floating non-spring actuator, and handles a flow rate of 19 Cv. It's ideal for regulating water flow in HVAC systems.

• Designed for easy installation and reliable operation.
• Features a stainless steel trim and internal thread end fitting.
• Robust IP54 NEMA 2 UL enclosure for enhanced durability.

Product Highlights

This valve offers efficient performance for both heating and cooling applications within HVAC systems, and is frequently used in air handling units. It's also ideal for fan coil unit heating or cooling coils and hydronic systems with variable flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: B224+LRB24-3-S

Technical Specifications

• Valve Type: 2-way
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Voltage: AC/DC 24V
• Flow Rate: 19 Cv
• Angle of Rotation: 90 degrees
• Manual Override: External push button
• Electrical Connection: Cable
