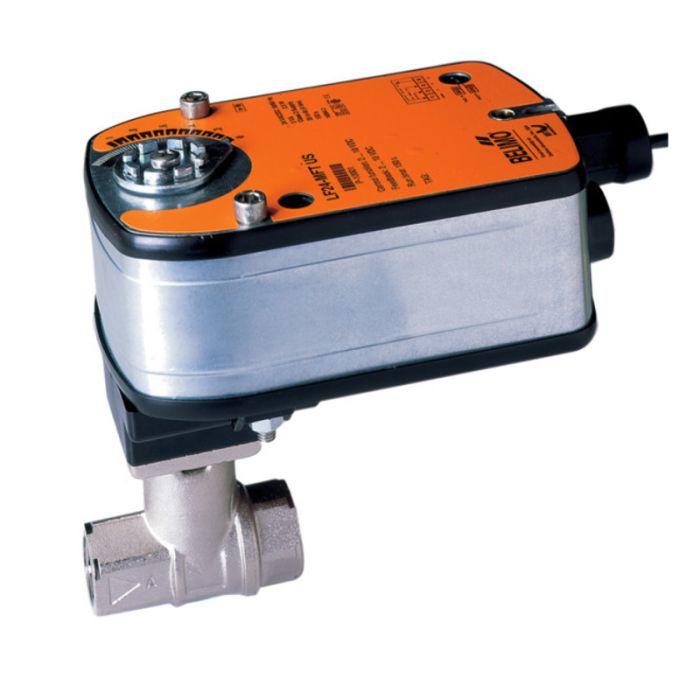

Belimo B224+LF24US CCV Assembly 2 Way 1 in NPT 19 Cv

Product Description

The Belimo B224+LF24 US is a characterized control valve designed for precise flow control in HVAC systems. This valve features a forged brass body and nickel-plated brass finish. It also has a stainless steel ball and stem, which provides durability and reliability. The actuator is direct coupled, offering up to thirty-five inch-pounds of torque and operates on both twenty-four VAC and VDC.

• Flush mounting for optimal functionality.
• Suitable for chilled or hot water up to sixty percent glycol.
• Zero leakage due to self-cleaning ball valve design.

Product Highlights

This control valve is typically used in air handling units on heating or cooling coils, as well as fan coil units. It accommodates variable flow in hydronic systems, making it ideal for various applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B224+LF24 US

Technical Specifications

• Valve Size: 1 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F
• Power Consumption: 5 W Running, 2.5 W Holding
• Electrical Connection: 3 ft. 18 GA Appliance Cable
• Degree of Protection: IP54 NEMA 2
