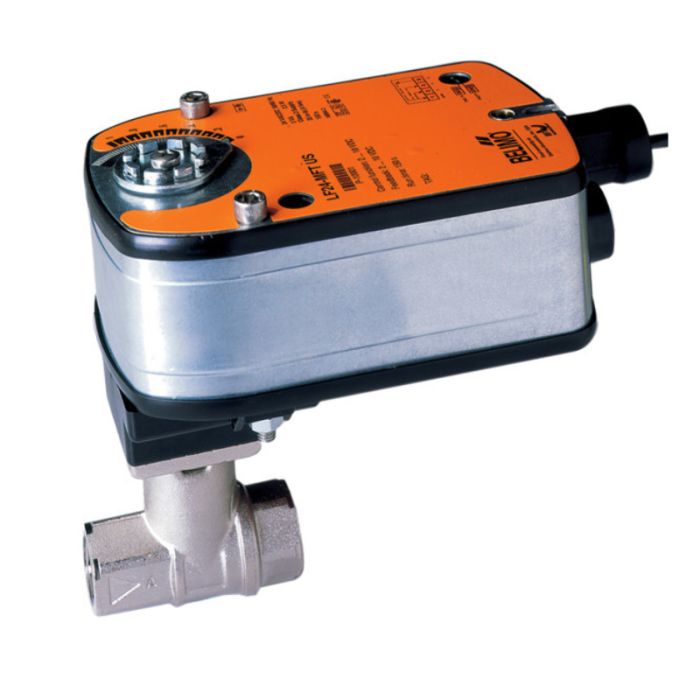

Belimo B224+LF120US CCV Assembly 2 Way 1 in NPT 19 Cv

Product Description

The Belimo B224+LF120US is a characterized control valve designed for heating and cooling systems. This valve features a forged brass body and is coated with nickel plating for durability. It uses a direct coupled actuator, providing reliable on/off operation with a spring return fail-safe feature.

• Valve is ideal for air handling units in heating or cooling coils.
• Suitable for hydronic systems with variable flow.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is designed for seamless installation in various HVAC applications, ensuring efficient control of water flow in heating and cooling units.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B224+LF120 US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled and hot water, up to 60% glycol
• Power Consumption: 5.5 W running, 3.5 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 °F to 122 °F (-30 °C to 50 °C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
