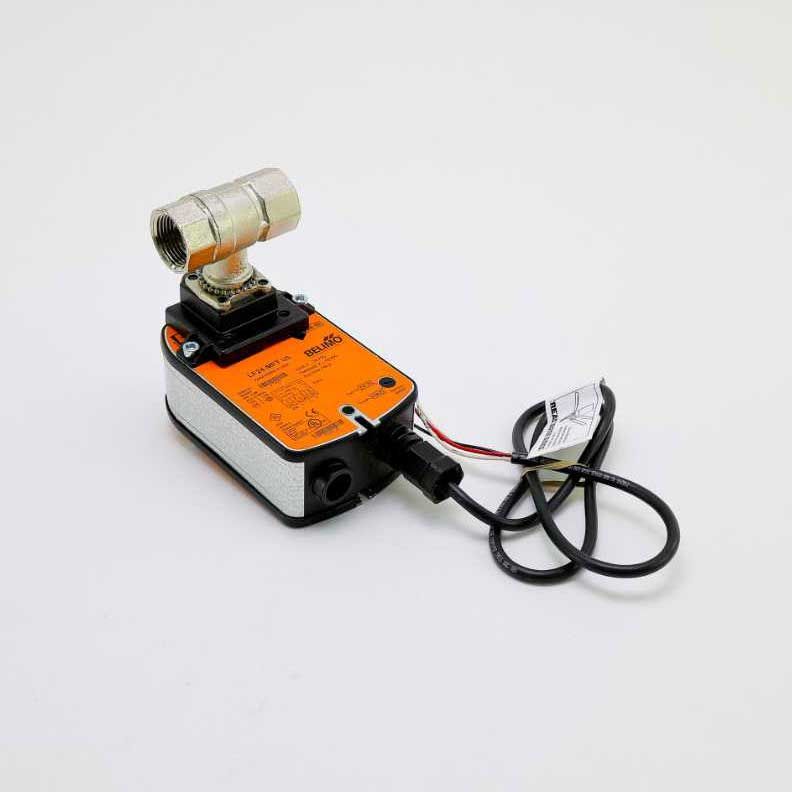

Belimo B223LF24-MFT CCV 1 2-Way 10 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo B223+LF24-MFT is a valve assembly designed for efficient control in HVAC systems. It is commonly deployed in air handling units, heating or cooling coils, and fan coil units. Additionally, it is suitable for use in unit ventilators, VAV box reheat coils, and bypass loops.

• Ideal for air handling units and coils
• Applicable in unit ventilators and VAV boxes
• Fits hydronic systems with variable flow

Product Highlights

This valve is particularly effective in managing hydraulic systems with variable flow rates, offering durable performance in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B223+LF24-MFT

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75%
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 s
• Running Time (Motor): 150 s / 90 degrees
• Voltage AC/DC: 24 V
