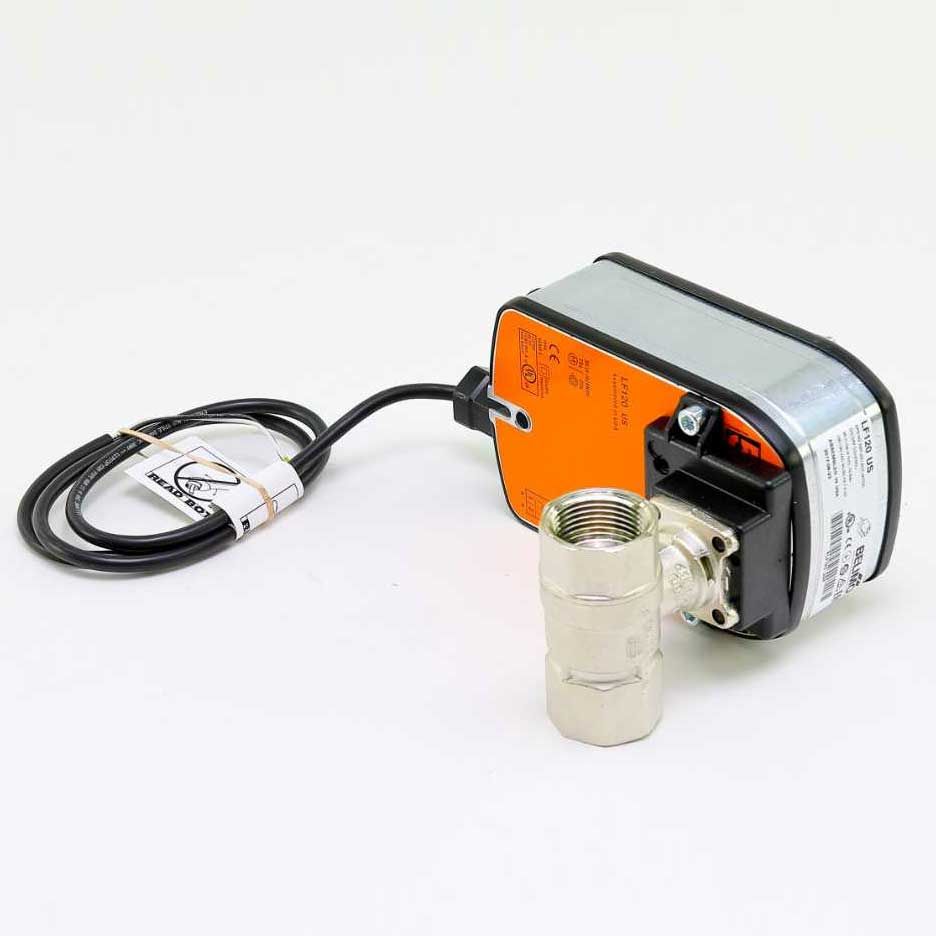

Product DescriptionBelimo's B223+LF120 CCV valve is used in air handling units for heating or cooling coils and in fan coil units. It is ideal for Unit Ventilators, VAV box re-heat coils, and bypass loops in hydronic systems with variable flow.
- Reliable operation with spring return actuator
- Durable stainless steel trim
- Suitable for variable flow hydronic systems
Product Highlights
This Belimo valve ensures stable and efficient HVAC system performance. It's designed for easy integration and reliable control, featuring a spring return actuator that supports 120V on/off control.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B223+LF120
Technical Specifications
-
Angle of Rotation: 90 degrees
-
Controllable Flow Range: 75 degrees
-
Cv: 10
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: No
-
Trim: Stainless steel
-
Valve Size: 1 inch
-
Actuator Type: Spring return
-
Degree of Protection: IP54 NEMA 2
-
Electrical Connection: Cable
-
Power Consumption (Holding): 3.5 W
-
Power Consumption (Running): 5.5 W
-
Running Time (Fail-safe): Less than 25 seconds
-
Running Time (Motor): 75 seconds for 90 degrees
-
Voltage AC/DC: AC 120 V
