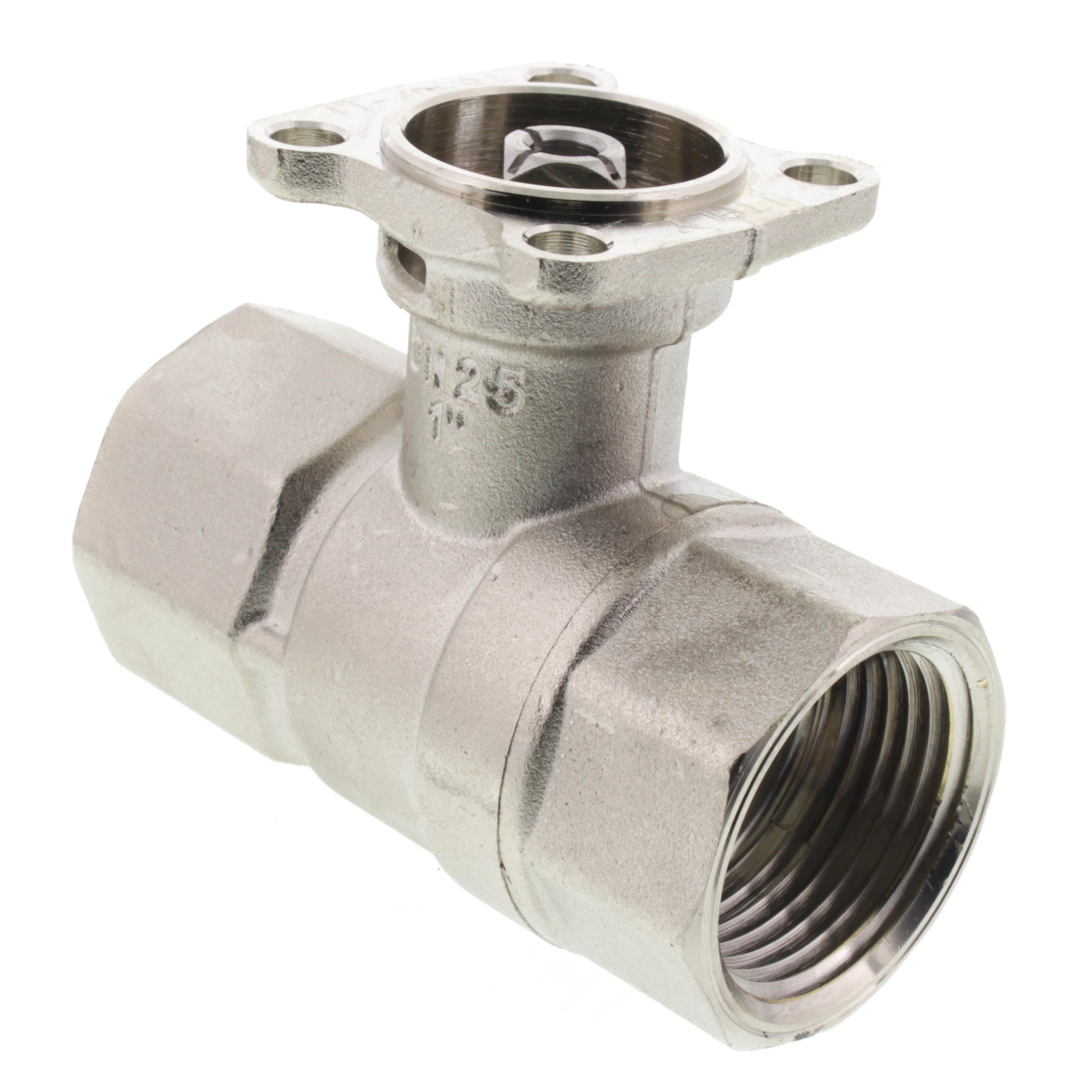

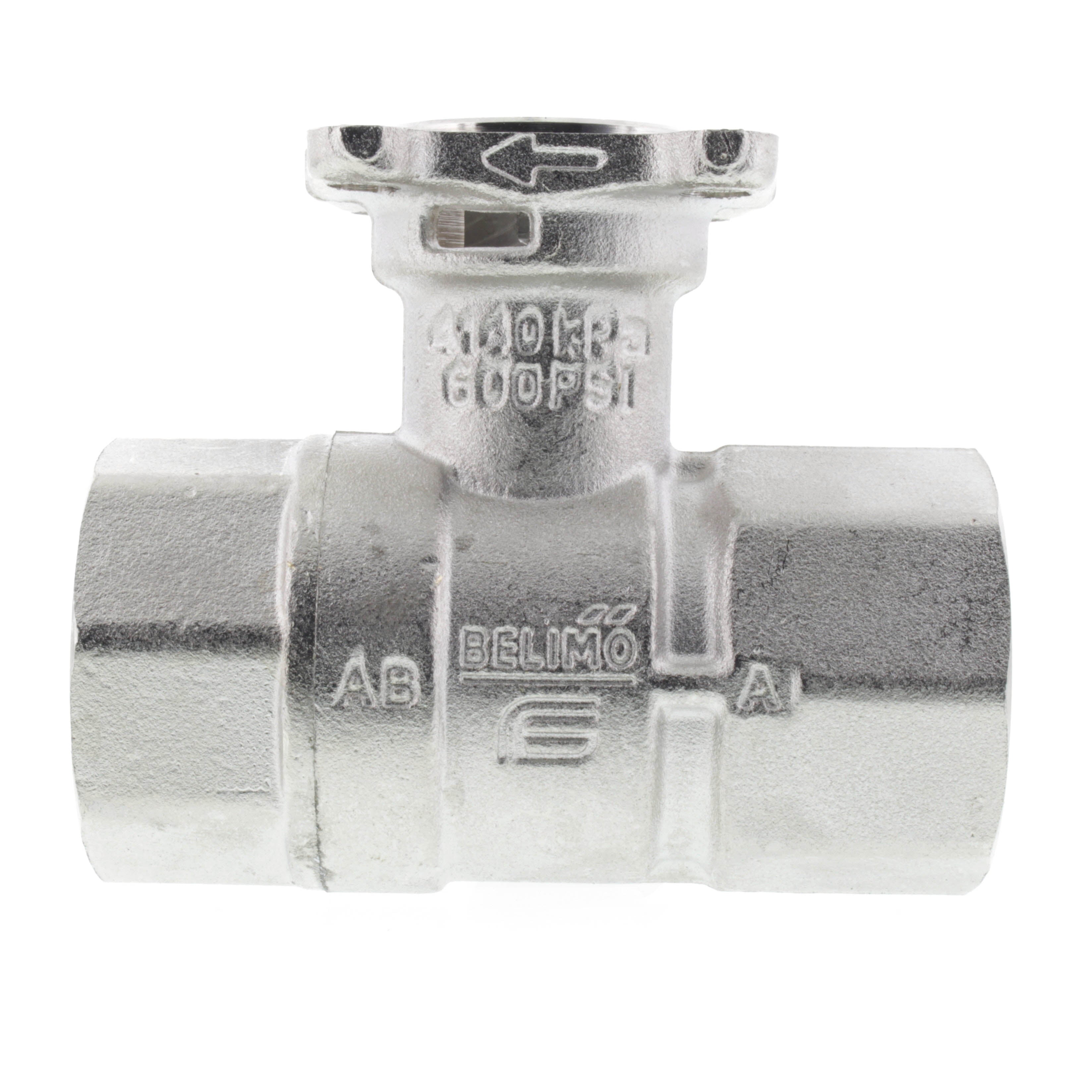

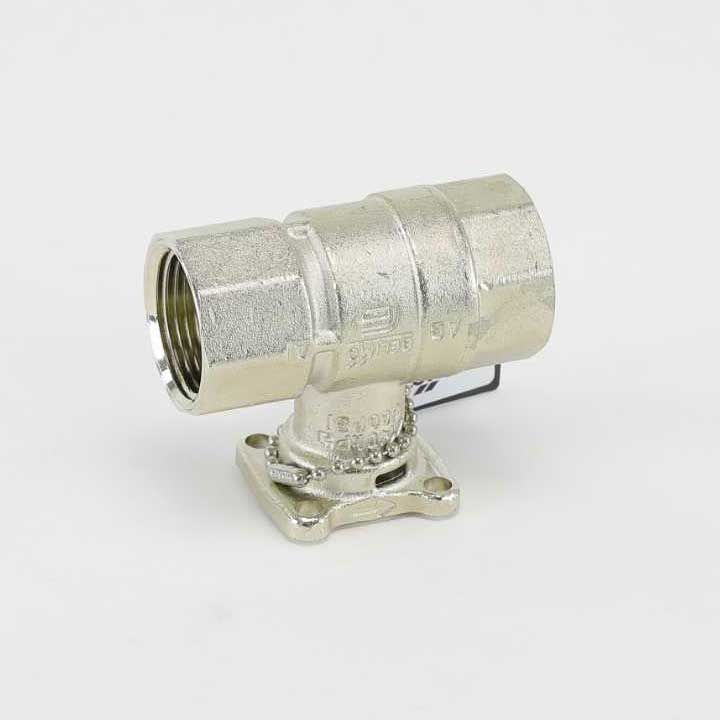

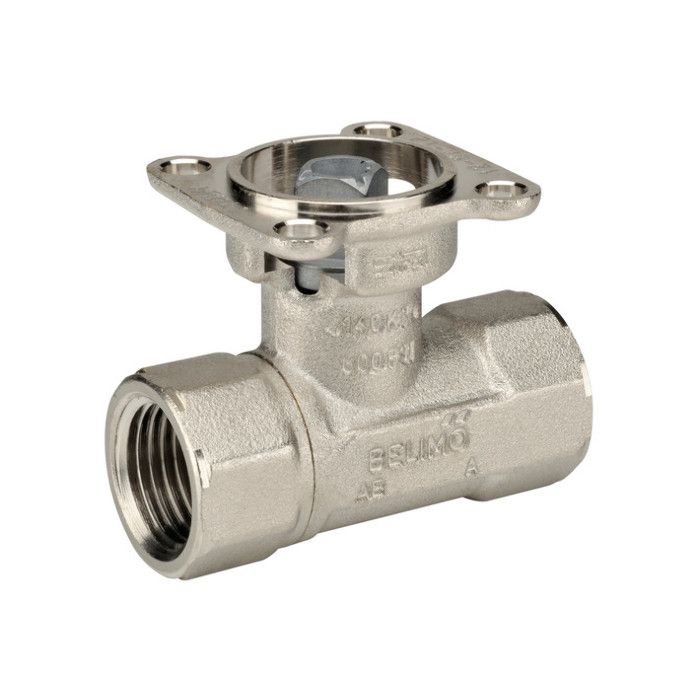

Belimo B223 CCV 2 Way 1 In NPT 10 Cv

Product Description

The Belimo B223 is a characterized control valve that features a two-way operation. It is designed with a one-inch NPT connection and has a flow coefficient of ten. This valve is appropriate for use in hydronic systems with variable flow and typically used in air handling units on heating or cooling coils.

• Designed for variable flow applications.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Constructed with a stainless steel ball and stem.

Product Highlights

The B223 valve ensures reliable performance for heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B223

Technical Specifications

• Close-Off Pressure: 200 psi
• Fluid: Chilled or hot water up to sixty percent glycol
• Flow Characteristic: Equal Percentage
• Operating Conditions: Zero degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Trim: Stainless steel
• End Fitting: Internal thread
• Valve Size: One inch
