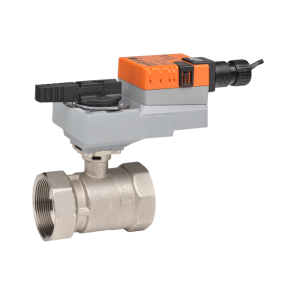

Belimo B221+LRX24-MFT CCV Assembly 2 Way 3/4 in. NPT 24 Cv

Product Description

The Belimo B221+LRX24-MFT is a characterized control valve designed for efficient fluid control in HVAC applications. This valve features a nickel plated brass body and a stainless steel ball and stem, ensuring durability and reliability. It operates with a direct coupled actuator and is suitable for a wide range of temperatures and fluids.

• 2-way valve configuration
• Works with chilled or hot water up to sixty percent glycol
• Non fail-safe design with 24 VAC/DC voltage

Product Highlights

This valve is engineered for HVAC systems where efficient flow control is essential. It supports programmable control types with a manual override function for flexible operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B221+LRX24-MFT

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 24
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Voltage: AC/DC 24 V
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
