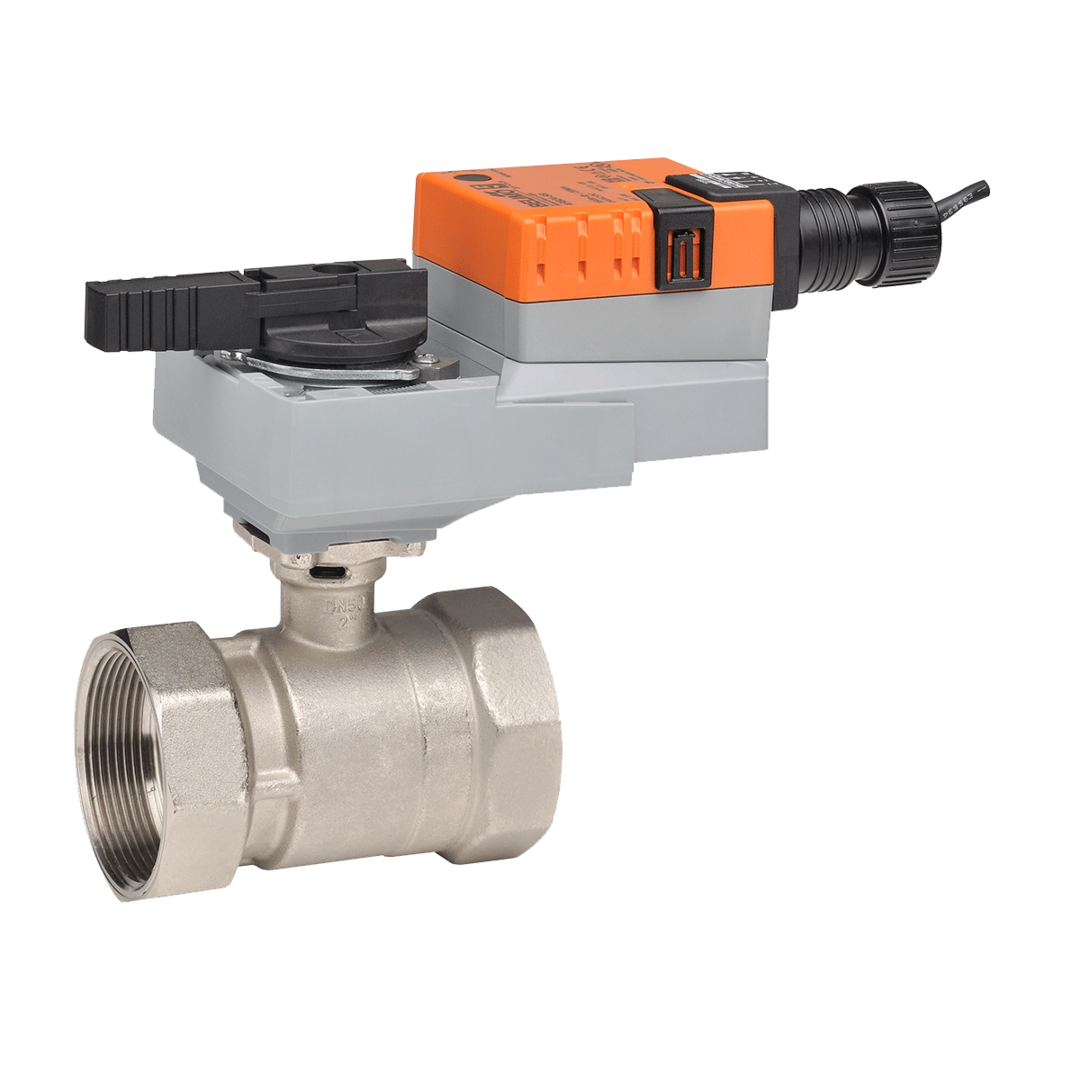

Belimo B221+LRB24-MFT CCV Assembly 2 Way 3/4 In NPT 24 Cv

Product Description

The Belimo B221+LRB24-MFT is a characterized control valve designed for HVAC systems. It features a nickel-plated brass body and stainless steel trim. This valve is equipped with a direct coupled actuator and operates on 24 VAC or DC, making it suitable for various applications.

• Two-way configuration for efficient fluid control
• Handles chilled or hot water with up to 60% glycol
• Manual override with an external push button

Product Highlights

The B221+LRB24-MFT valve offers a controllable flow range and a robust design for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B221+LRB24-MFT

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 24
• Angle of Rotation: 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: No
• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
