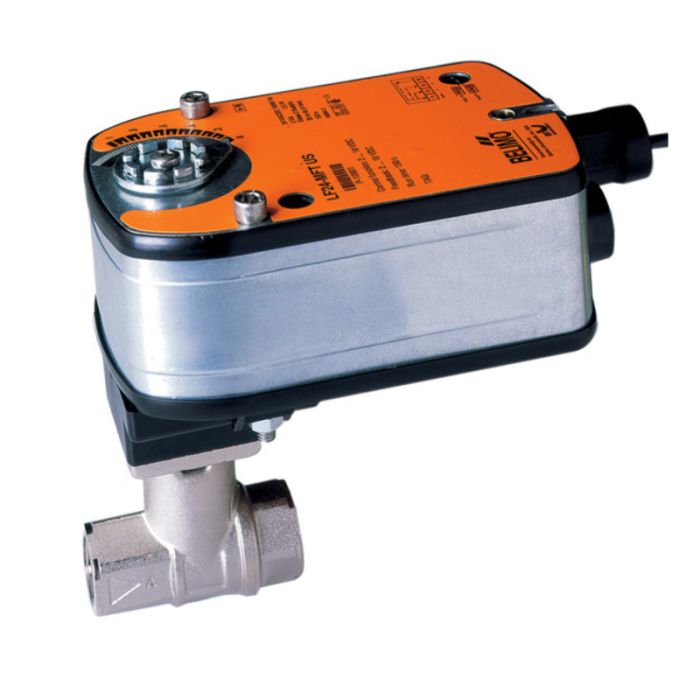

Belimo B221+LF24US CCV Assembly 2 Way 3/4 in NPT 24 Cv

Product Description

The Belimo B221+LF24US is a Characterized Control Valve designed for HVAC systems. This valve is typically utilized in air handling units on heating and cooling coils, as well as in fan coil unit systems. It features a forged brass body with nickel plating for enhanced durability and comes with a stainless steel ball and stem for reliable performance. The valve supports direct coupling with an actuator rated at thirty-five inch-pounds, facilitating an on/off operation with a spring return mechanism. Operating at twenty-four volts AC or DC, this valve is suitable for a range of applications in hydronic systems with variable flow.

• Suitable for chilled or hot water applications with up to sixty percent glycol.
• Delivers an equal percentage flow characteristic, ensuring precise control.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is ideal for managing the flow of water in heating and cooling systems, ensuring efficient temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B221+LF24US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up to 60% Glycol
• Power Consumption: 5 W Running, 2.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Valve Size: 0.75 inches [20 mm]
