Belimo B221+LF24-SR US Ccv Assembly 2 Way, 3/4 in. NPT, 24 Cv

Product Description

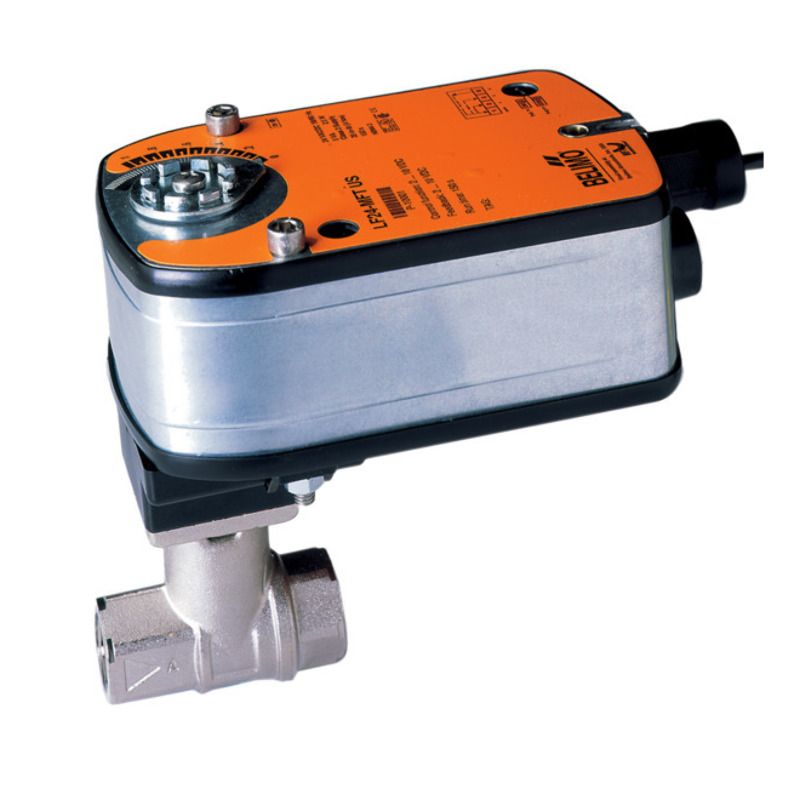

The BELIMO B221+LF24-SR US is a Characterized Control Valve with a forged brass, nickel-plated brass body, and stainless steel ball and stem. It features a direct-coupled actuator, modulating spring return, and operates on 24 VAC for 2 to 10 VDC or 4 to 20 mA control signals. Typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This valve is designed for use in hydronic systems with variable flow and offers self-cleaning with zero leakage. It is rated for water temperatures up to 250 F.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B221+LF24-SR US
• Country of Origin: US

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2.5 W Running, 1 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
• MPN: B221+LF24-SR US
• Brand: BELIMO
