Belimo B221+LF24-S US Ccv Assembly 2 Way 24 Cv

Product Description

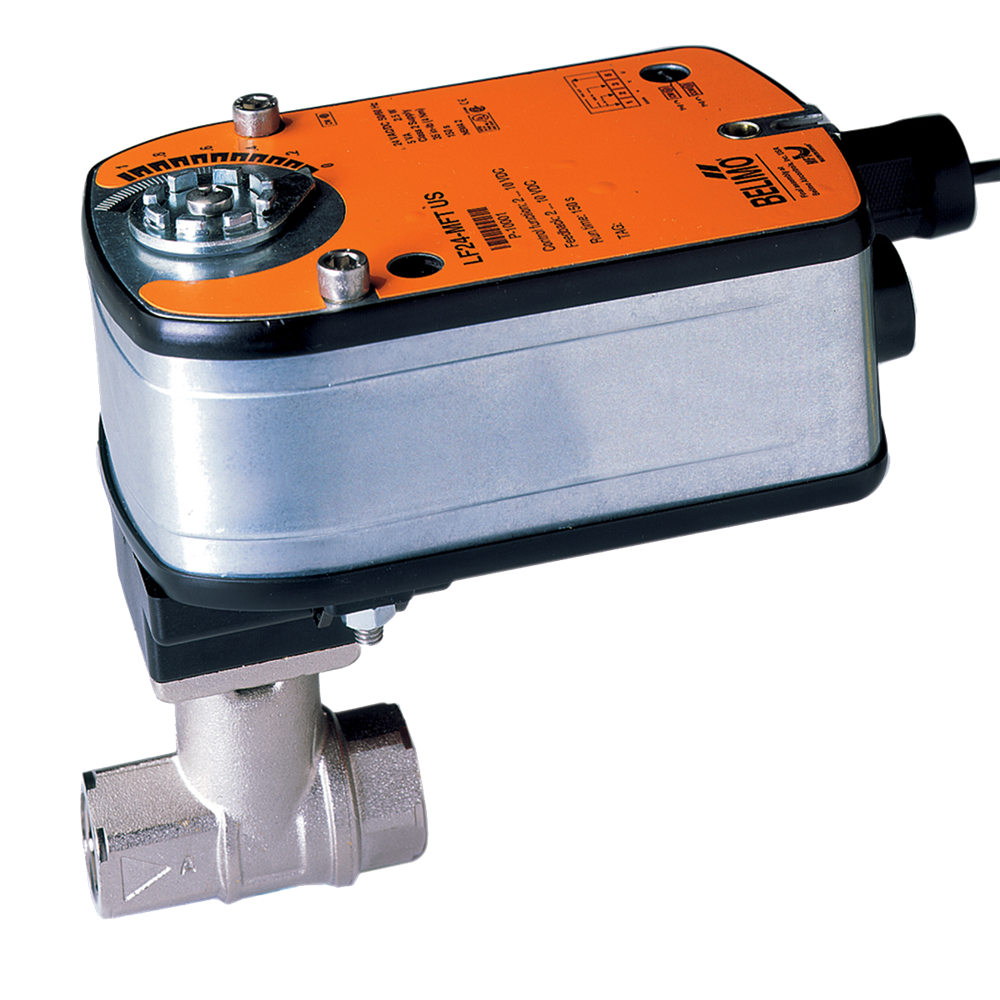

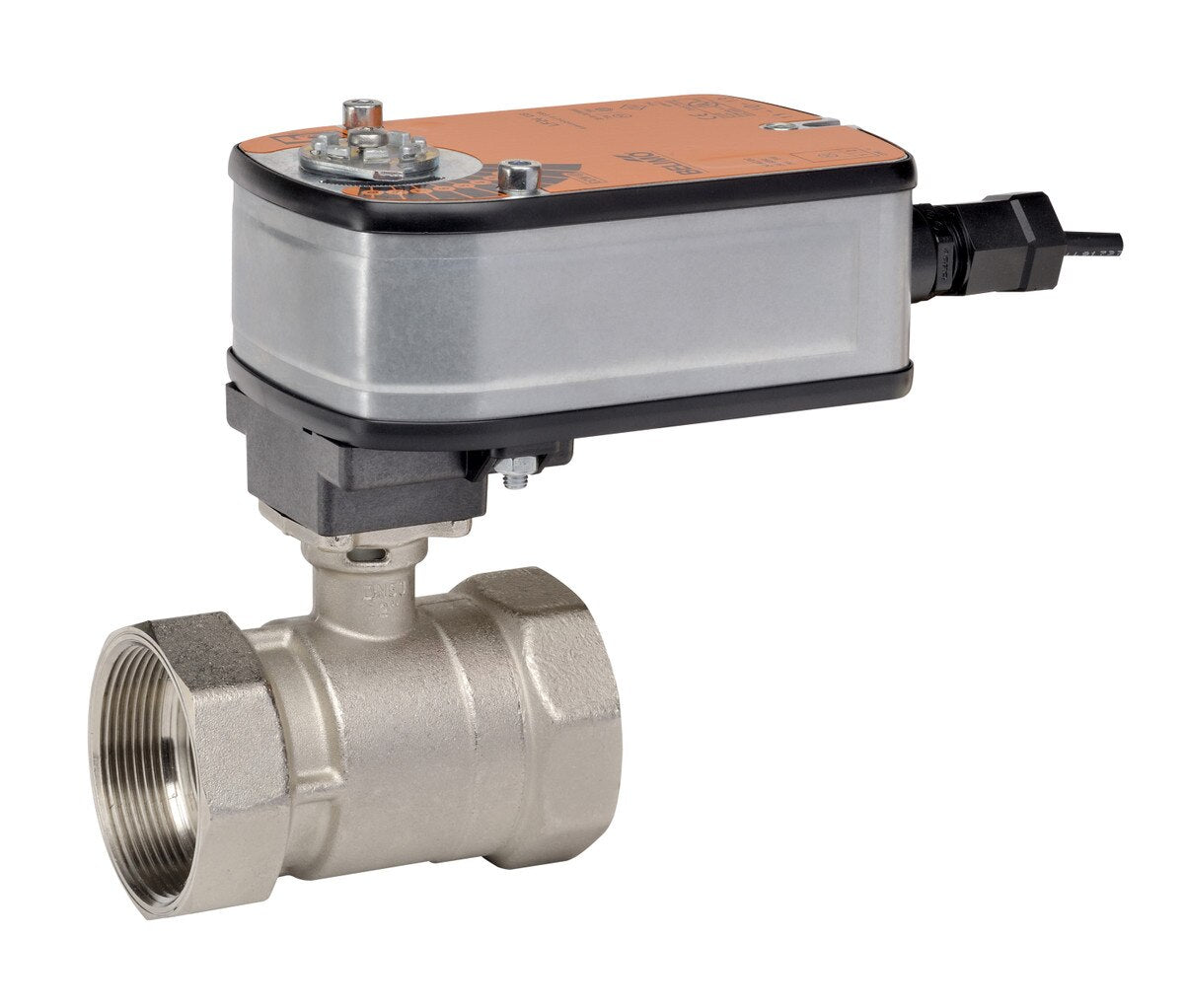

The BELIMO B221+LF24-S US is a characterized control valve assembly. It features a forged brass, nickel-plated brass body, and stainless steel ball and stem. The direct-coupled actuator delivers 35 in-lb torque and operates on 24 VAC/DC with on/off, spring return functionality. It is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

The BELIMO B221+LF24-S US valve is rated for water temperatures up to 250 F and offers self-cleaning with zero leakage.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B221+LF24-S US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 5 W Running, 2.5 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: cable
• Angle of Rotation: 90
• Cv: 24
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.75" [20]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 75 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 75 Secs
• Voltage: 24vac
• Actuator: LF24-S US
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 100 PSI
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 7 VA
• Control Type: On/Off
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Brand: Belimo
• Auxiliary Switch: 1 SPDT
• Torque: 35 in-lb [4 Nm]
• Ambient Temperature: -22...122 °F [-30...50 °C]
• Valve Pattern: 2-Way
• CV Rating: 24
• GPM: 88 @ Δ 4 psi
• Material: Stainless Steel
• Control Signal: On/Off
• Auxillary Switch: None
• Enclosure: None
• Valve Material: Stainless Steel Ball and Stem
• Run Time: <40-75 Second
• Spring Return Time: <25 Second
• Control Input: On/Off
• Damper Area: Up to 8.8 Sq.Ft.
• Warranty: 5-Year
• Enclosure nema rating: NEMA 2
• Fail safe: Fail Safe
• Features and benefits: 35 in-lbs [4 Nm] minimum | <75 seconds | 1 SPDT | NPT female ends | Forged Brass, Nickel Plated
• Size: 3/4 Inch
