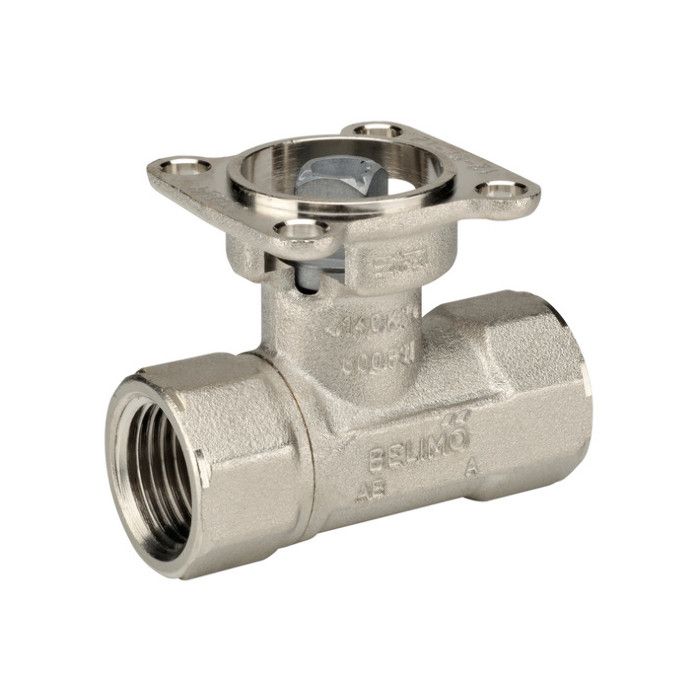

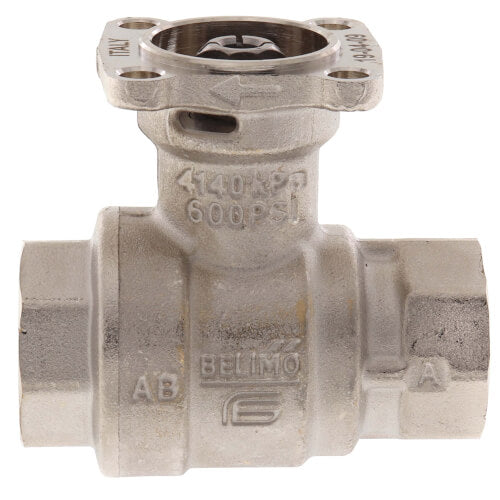

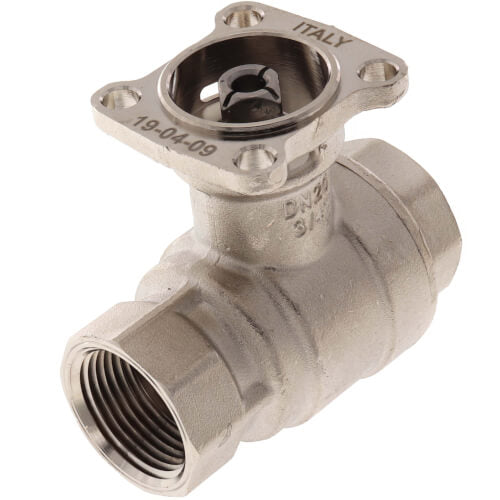

Belimo B221 CCV, 2 Way, 3/4 in NPT, 24 Cv

Product Description

The Belimo B221 is a characterized control valve designed for precise flow control in HVAC applications. This 2-way valve features a three-quarter inch NPT thread with a flow coefficient of twenty-four. Built with a forged brass body and stainless steel components, the B221 is suitable for both chilled and hot water applications, making it versatile for different systems.

• Size: 3/4 inch NPT
• Cv: 24
• Material: Brass body with stainless steel ball and stem

Product Highlights

This valve aids in maintaining system efficiency and stability, featuring a characterizing disc that enhances flow regulation compared to conventional ball valves.

Product Information

Standard Information

• Brand: Belimo
• MPN: B221

Technical Specifications

• Controllable Flow Range: 75B0
• Flow Capacity (Cv): 24
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim Material: Stainless steel
• Valve Size: 0.75 inches
