Belimo B220HT928+LF24-MFT | HTCCV | 0.75 | 2 Way | 9.28 Cv | w/ Spg Rtn | 24V | MFT

Product Description

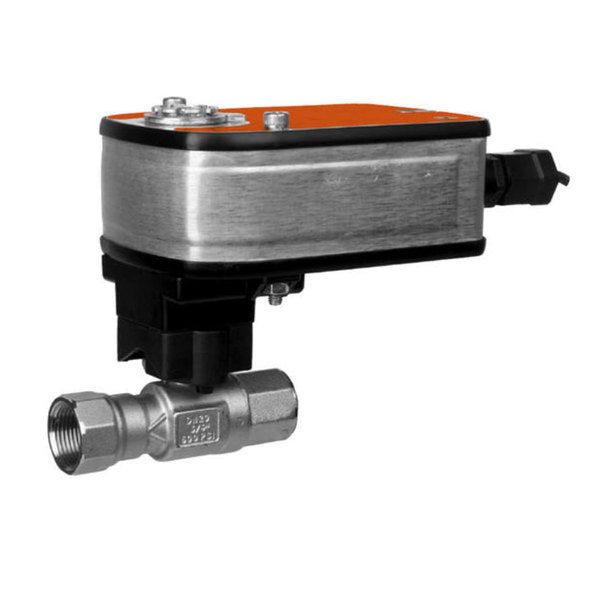

The Belimo B220HT928+LF24-MFT is a high-efficiency control valve with a size of 0.75 inches. It operates in a two-way pattern with a flow coefficient (Cv) of 9.28. Designed for high temperature hot water and low pressure steam, this valve supports fluid mediums containing up to 60% glycol and is intended for commercial applications.

• Two-way valve design with a flow coefficient of 9.28.
• Spring return actuator with AC/DC voltage of 24V.
• Constructed with stainless steel trim for durability.

Product Highlights

This product is ideal for HVAC systems that require reliable flow control in heating applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT928+LF24-MFT

Technical Specifications

• Valve Size: 0.75 [20]
• Cv: 9.28
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• End Fitting: Internal thread
• Angle of Rotation: 90
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24 V
• Degree of Protection: IP54 NEMA 2
• Running Time (Motor): 150 s / 90 degrees
• Power Consumption (Running): 2.5 W
• Electrical Connection: Cable
