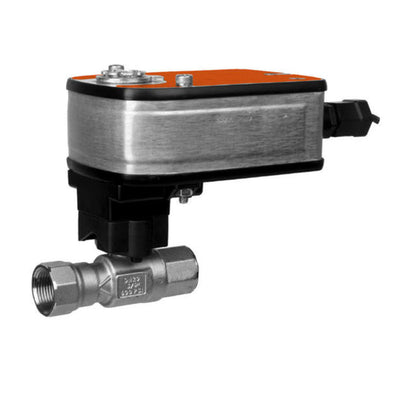

Belimo B220HT731+LF24-SR | HTCCV | 0.75 | 2 Way | 7.31 Cv | w/ Spg Rtn | 24V | 2-10V

Product Description

The Belimo B220HT731+LF24-SR is a two-way valve with a size of point seven five inches and a flow coefficient (Cv) of seven point thirty-one. It operates with a spring return actuator and is designed for use with high temperature hot water or low pressure steam systems up to sixty percent glycol.

• Spring return actuator with a voltage of twenty-four volts
• Compatible with controlling flow range of seventy-five B0
• Built with stainless steel trim for durability

Product Highlights

This valve is ideal for HVAC systems that require efficient flow control. Its robust construction and reliable performance make it a suitable choice for various applications in heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT731+LF24-SR

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• Cv: 7.31
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.75 [20]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): < 25 s
• Running Time (Motor): 150 s / 90B0
• Voltage AC/DC: AC/DC 24 V
