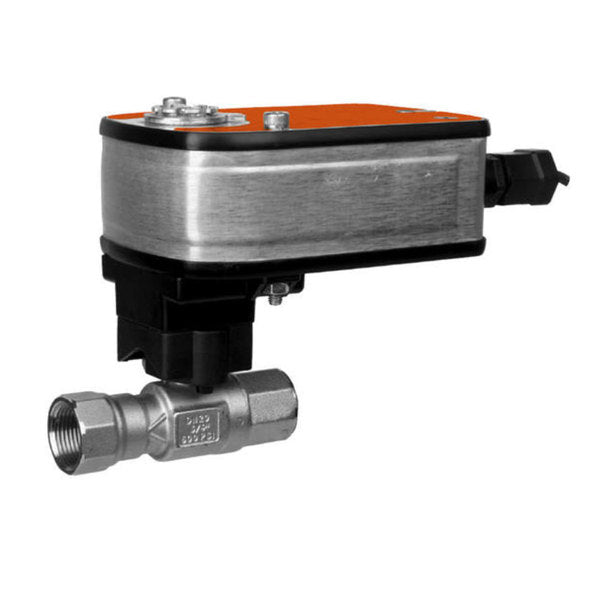

Belimo B220HT731+LF24-S HTCCV 0.75 2 Way 7.31 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B220HT731+LF24-S valve is designed for use in air handling units for heating or cooling applications. This valve is ideal for fan coil units as well as unit ventilators and bypass loops. It is suitable for hydronic systems with variable flow. The compact design accommodates on/off, floating point, and modulating control with a voltage of 24 VAC.

• Applications include heating and cooling coils in air handling units
• Variable flow hydronic systems
• Compact design for tight spaces

Product Highlights

This valve supports efficient control in various HVAC systems, ensuring optimal performance in residential and commercial setups.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT731+LF24-S

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 7.31
• Pattern: 2-way
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• IP Protection: IP54 NEMA2
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds
