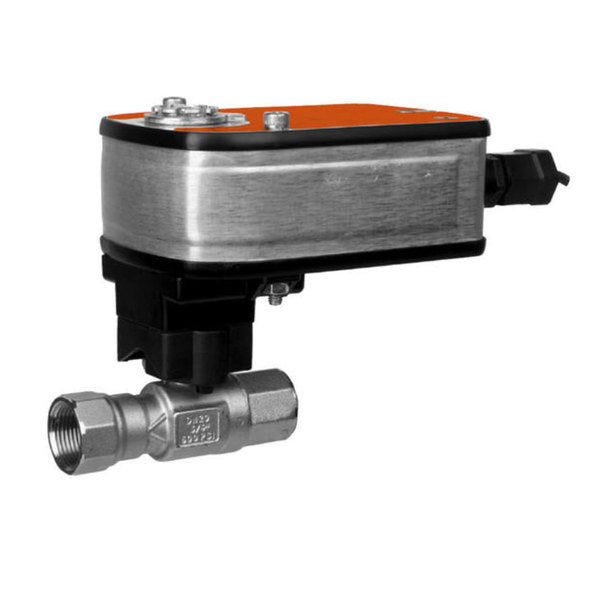

Belimo B220HT731+LF24-MFT HTCCV 0.75 2 Way 7.31 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo B220HT731+LF24-MFT is a two-way control valve designed for HVAC applications.

• Flow coefficient (Cv) of 7.31
• Voltage of 24V for efficient operation
• Spring return actuator for quick response

Product Highlights

This valve enables precision control in various systems, ensuring optimal flow management.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT731+LF24-MFT

Technical Specifications

• Angle of Rotation: 90
• Controllable Flow Range: 75B0
• Cv: 7.31
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.75 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: AC/DC 24 V
