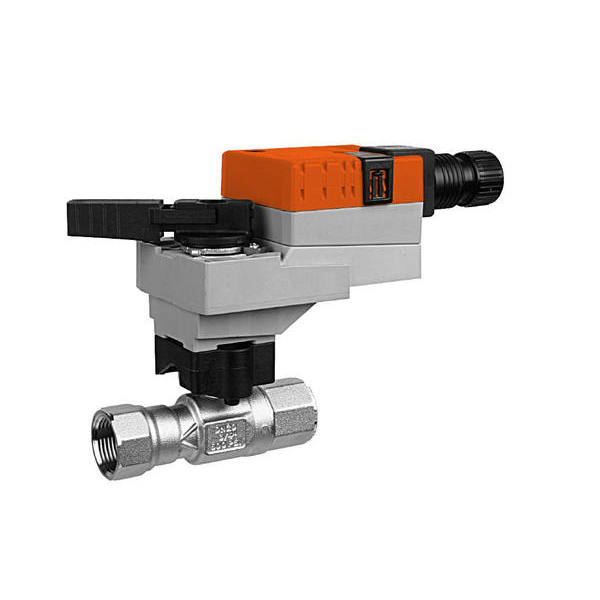

Belimo B220HT1320+LRB24-3 HTCCV Assembly 2 Way 3/4 in NPT

Product Description

The Belimo B220HT1320+LRB24-3 is a high-temperature characterized control valve designed for use in HVAC systems. This valve features a nickel-plated brass body and a stainless steel ball stem, ensuring durability in various environments.

• Valve handle temperature ranges of up to 250°F.
• Ideal for hydronic systems with variable flow.
• Self-cleaning ball valve design provides zero leakage.

Product Highlights

This valve is suitable for air handling units, heating coils, and cooling coils in fan coil unit applications. The actuator provides precise control, making it effective for maintaining desired temperatures in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B220HT1320+LRB24-3

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 13.2
• Operating Conditions: -22°F to 122°F
• Trim: Stainless steel
• Control Type: Floating/3-point
• Power Consumption: 1.5 W running, 0.2 W holding
• Electrical Connection: 3 ft. 18 GA plenum cable
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port equal percentage
