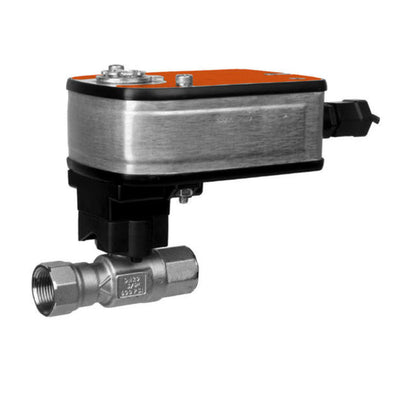

Belimo B220HT1320+LF120 | HTCCV | 0.75 | 2 Way | 13.2 Cv | w/ Spg Rtn | 120V

Product Description

The Belimo B220HT1320+LF120 is a two-way control valve used primarily in air handling units for heating and cooling applications. This unit features a compact design suitable for hydronic systems that operate with variable flow. It includes a spring return actuator and operates on 120 volts.

• Designed for air handling and fan coil units
• Compact design for easy installation
• Operates on 120 volts for efficient control

Product Highlights

This valve offers precise control for heating and cooling systems.

Product Information

Standard Information

• Application: For air handling units, fan coil units, unit ventilators, and more.
• Fluid Compatibility: High temperature hot water or low pressure steam with glycol.

Technical Specifications

• Valve Size: 0.75 inches [20]
• Cv: 13.2
• Actuator Type: Spring return
• End Fitting: Internal thread
• Electrical Connection: Cable
• Voltage: AC 120V
• Degree of Protection: IP54 NEMA2
• Angle of Rotation: 90 degrees
