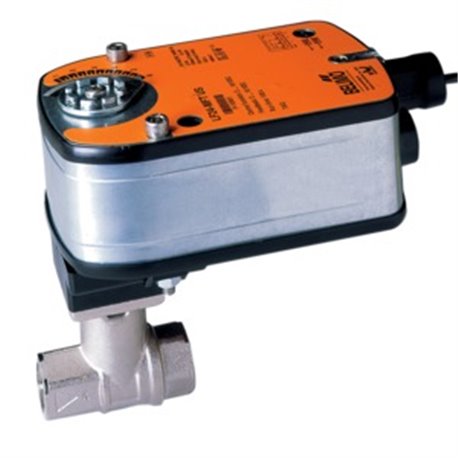

Belimo B220B+LF24 CCV 0.75 2 Way 14 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B220B+LF24 is a control valve designed for use in HVAC systems. This valve operates at twenty-four volts and is suitable for heating and cooling applications. It features a two-way pattern and is commonly installed in air handling units, fan coil units, and VAV reheat coils.

• Voltage: 24V
• Flow Capacity: 14 Cv
• Actuator Type: Spring return

Product Highlights

This valve enhances temperature control in hydronic systems with variable flow capabilities.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220B+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.75 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds
• Voltage AC/DC: AC/DC 24 V
