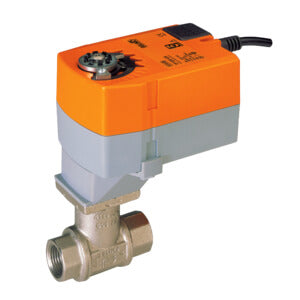

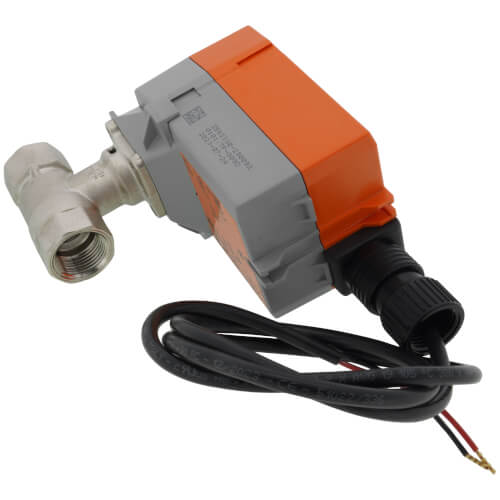

Belimo B220+TFRB24-S | CCV | 0.75 | 2 Way | 14 Cv | w/ Spg Rtn | 24V | On/Off | SW

Product Description

The Belimo B220+TFRB24-S is a characterized control valve designed for HVAC systems. This valve operates as a two-way valve and is capable of handling a flow capacity of 14 Cv. It functions with a spring return actuator and operates on 24V AC/DC power for reliable performance in controlling chilled or hot water systems.

• Valve Size: 0.75 inches
• Electrical Connection: Cable
• Power Consumption: 1.3 W (holding), 2 W (running)

Product Highlights

This valve provides effective flow control in heating and cooling systems. It features an IP42 protection rating, ensuring durability in diverse environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220+TFRB24-S

Technical Specifications

• Valve Type: 2-way
• Cv: 14
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Angle of Rotation: 95 degrees
• Control Type: On/Off
• Voltage: AC/DC 24 V
• Actuator Type: Spring return
• Trim Material: Stainless steel
• Degree of Protection: IP42
