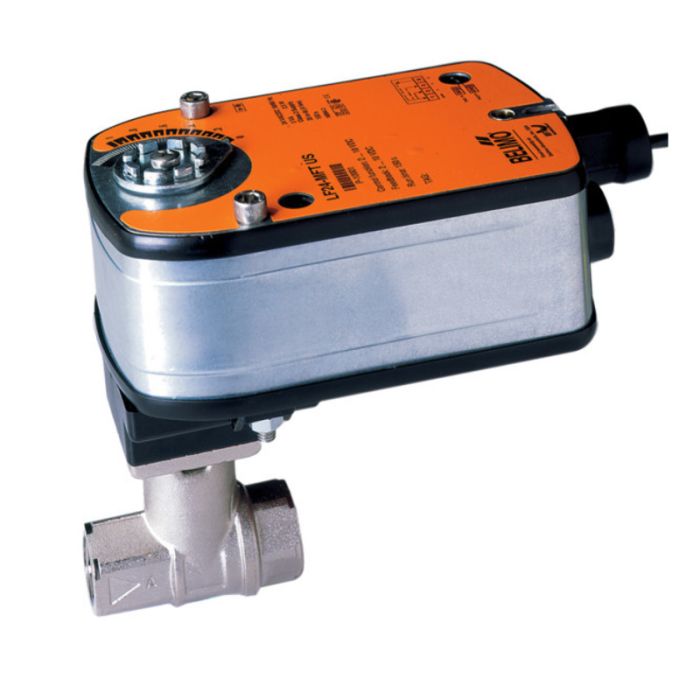

Belimo B220+LF24 US CCV Assembly 2 Way 3/4 in NPT 14 Cv

Product Description

The Belimo B220+LF24 US is a characterized control valve designed for HVAC applications. This valve features a forged brass body with a nickel-plated finish, ensuring durability and resistance to corrosion. It includes a stainless steel ball and stem, making it suitable for high-performance environments. The direct-coupled actuator operates with a torque of thirty-five inch-pounds and can function on either twenty-four VAC or DC.

• Used typically in air handling units for heating and cooling coils
• Compatible with hydronic systems with variable flow
• Ball valve design for self-cleaning and zero leakage

Product Highlights

This valve is ideal for applications where precise control of water flow is necessary, rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B220+LF24 US

Technical Specifications

• Cv: 14
• Fluid: Chilled or hot water with up to 60% glycol
• Close-Off Pressure: 200 psi
• Angle of Rotation: 90 degrees
• Electrical Connection: Three feet, eighteen gauge appliance cable with half-inch conduit connector
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Power Consumption: 5 W running, 2.5 W holding
• Trim: Stainless steel
