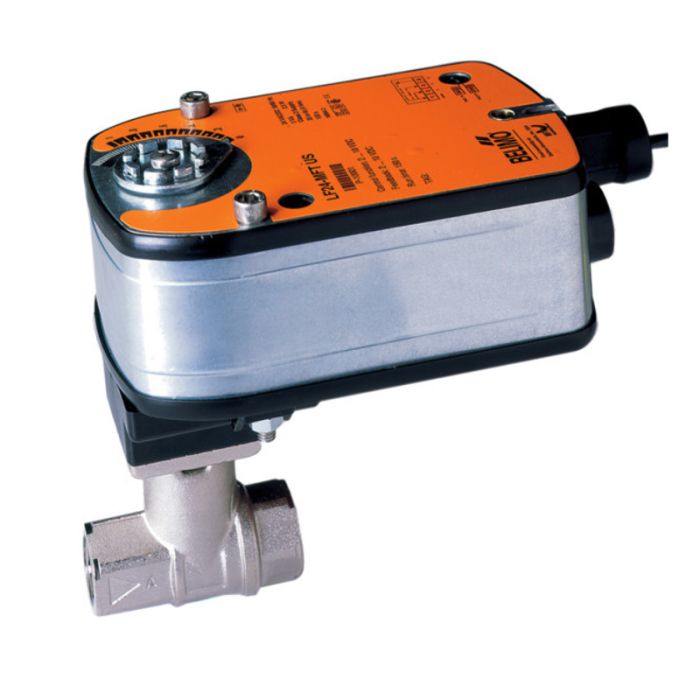

Belimo B220+LF120 US CCV Assembly 2 Way 3/4 in NPT 14 Cv

Product Description

The Belimo B220+LF120 US is a characteristically designed control valve used in HVAC applications. This valve features a forged brass construction and is designed to control the flow of chilled or hot water. It has a direct-coupled actuator with a spring return fail-safe mechanism.

• Designed for use in air handling units and fan coil heating or cooling coils.
• Suitable for hydronic systems with variable flow.
• Offers a self-cleaning ball valve design with zero leakage.

Product Highlights

Ideal for applications in HVAC systems for efficient temperature control and flow management.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B220+LF120 US

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Power Consumption: 5.5 W Running, 3.5 W Holding
• Operating Conditions: -22 F to 122 F
• Voltage: AC 120 V
• Valve Size: 0.75 inches
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 inch conduit connector
• Degree of Protection: IP54 NEMA 2
