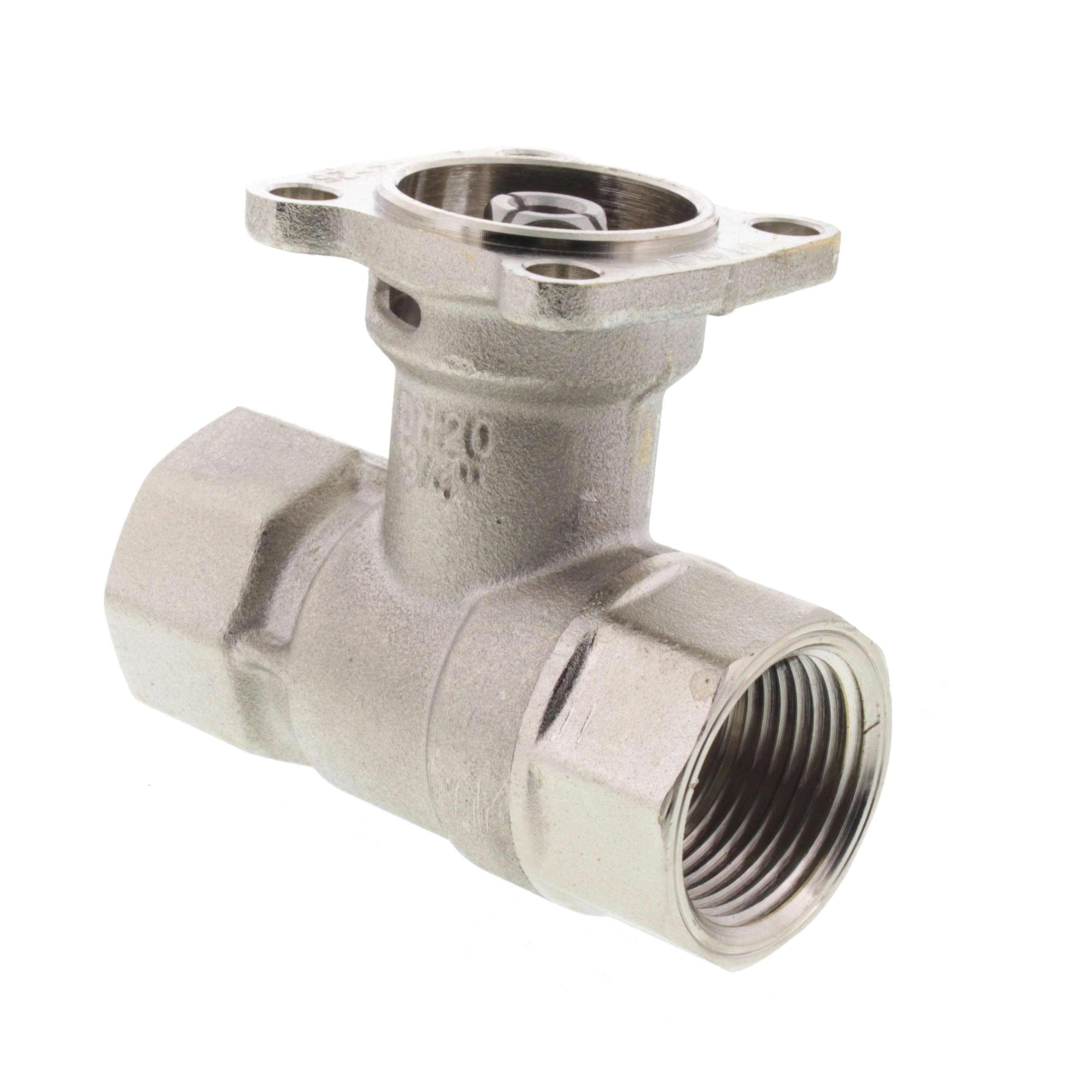

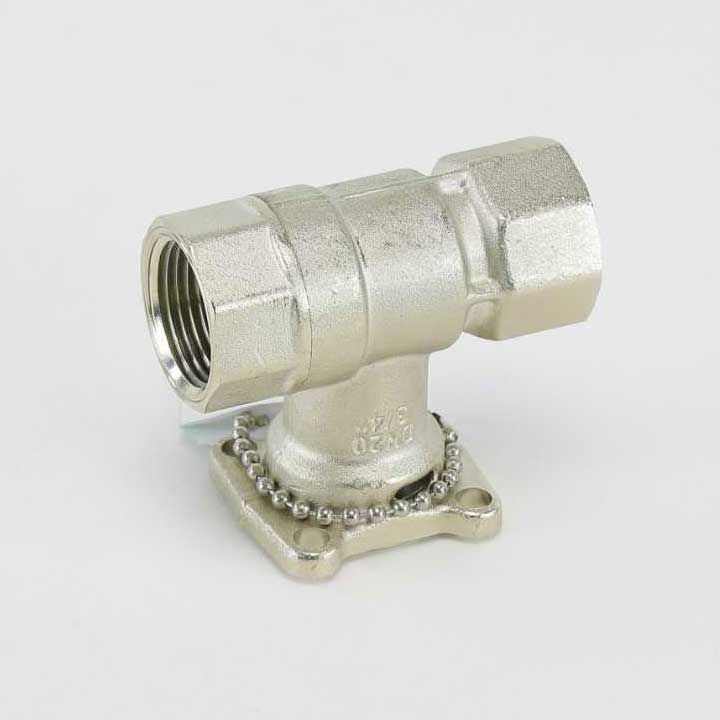

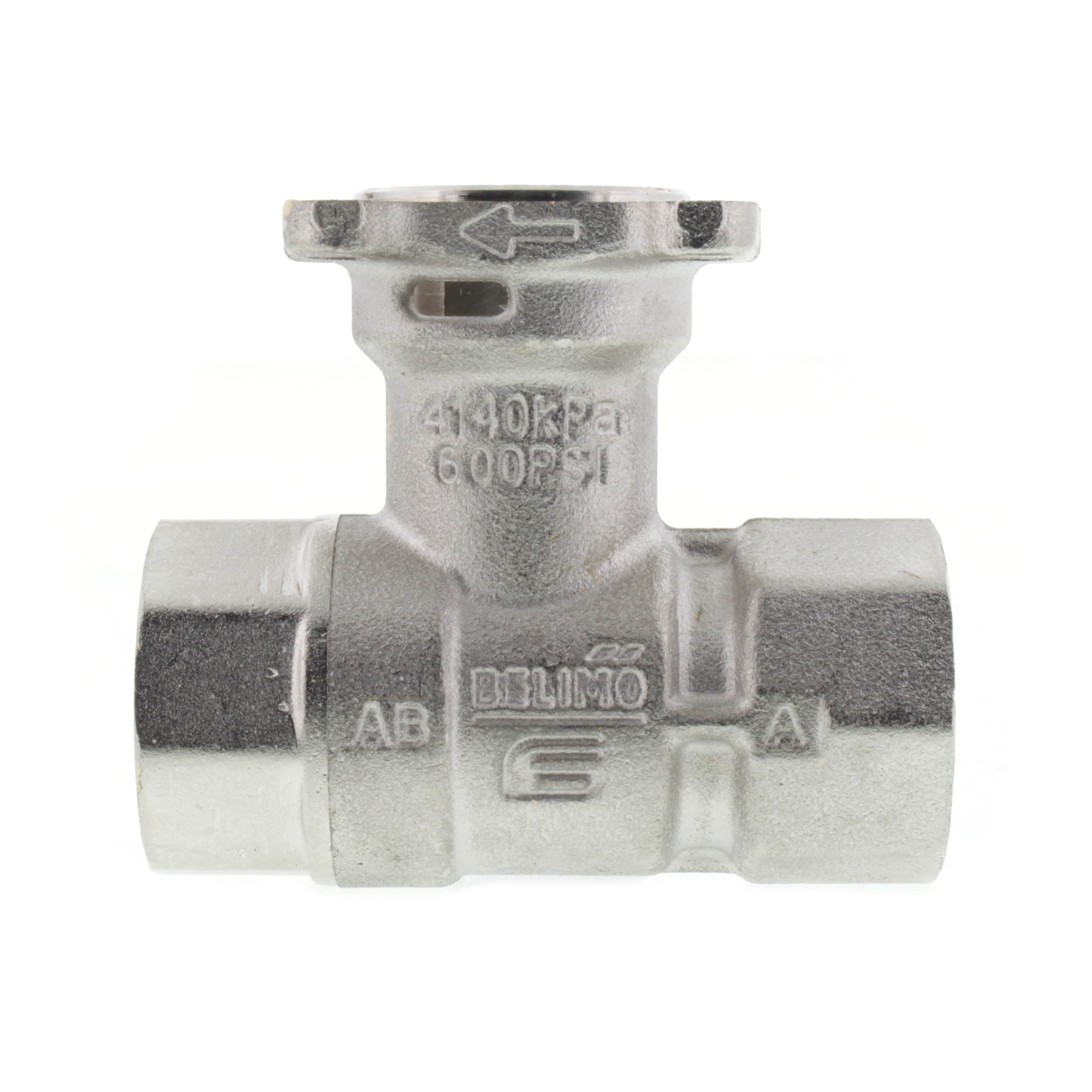

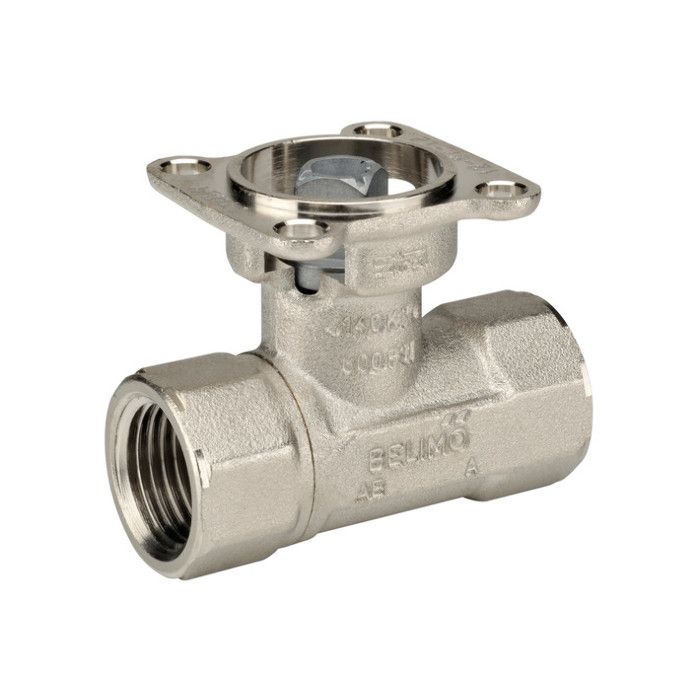

Belimo B220 Characterized Control Valve CCV 3/4 NPT 2-way 14 Cv

Product Description

The Belimo B220 is a characterized control valve designed for use in HVAC systems. This valve is suitable for both chilled and hot water applications with a maximum temperature of 250 degrees Fahrenheit. It supports variable flow in hydronic systems.

• Flow capacity of 14 Cv for effective control.
• Stainless steel ball and stem for durability.
• Forged brass, nickel-plated body ensures long-lasting performance.

Product Highlights

This valve's unique design allows for better part-load behavior and improved energy efficiency, supporting applications like air handling units and fan coil units.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B220

Technical Specifications

• Valve Size: 0.75 inches
• Flow Characteristic: A-Port Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F
• Trimming Material: Stainless steel
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol
• Weight: 0.73 lbs
