Product Description

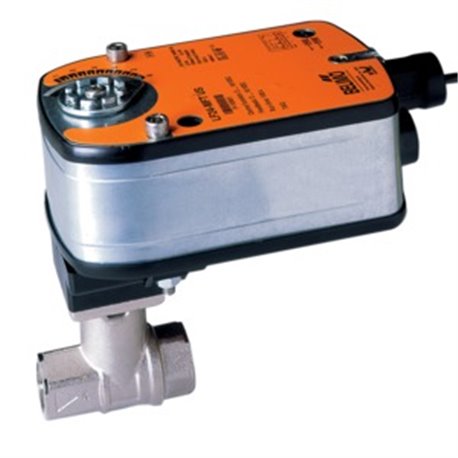

Belimo B219B+LF24-SR-S is a control valve designed for regulating the flow of chilled or hot water. This model features a two-way design and operates at a size of three-quarters of an inch. It is equipped with a spring return actuator, providing reliable operation in various HVAC applications.

• 2-way design for versatile flow control.
• Spring return actuator for effective performance.
• Ideal for chilled or hot water systems up to 60% glycol.

Product Highlights

This control valve is suitable for applications requiring precise temperature control and flow regulation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B219B+LF24-SR-S

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 10
• Fluid Type: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pattern: 2-way
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Voltage: AC/DC 24V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Degree of Protection: IP54 NEMA2
