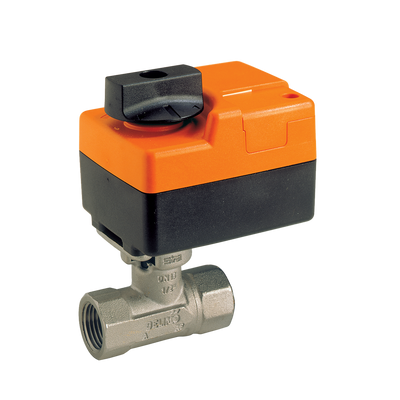

BELIMO B219+TR24-3-T CCV 0.75 Inch 2 Way 10 Cv Non-Spg 24V Floating

Product Description

The Belimo B219+TR24-3-T control valve is engineered to enhance the performance of heating and cooling systems. Featuring advanced technology, this 0.75-inch valve facilitates precise control in hydronic systems with a controllable flow range and is made from durable stainless steel.

• Optimal for air handling units and fan coil unit applications.
• Equipped with a non-fail-safe actuator and floating control for precise operation.
• Designed for systems using chilled or hot water up to 60% glycol.

Product Highlights

This 2-way valve offers a Cv of 10 and includes a manual override feature, ensuring reliable performance in various setups. The stainless steel trim enhances longevity, while its internal thread end fitting ensures easy installation. Ideal for VAV box reheat coils and bypass loops.

Technical Specifications

• Valve Size: 0.75 inch
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Electrical Connection: Terminals
• Voltage: AC 24V
• Angle of Rotation: 90 degrees
• Pressure Independent: No
• Manual Override: Push down handle
• Running Time (Motor): 90 seconds
