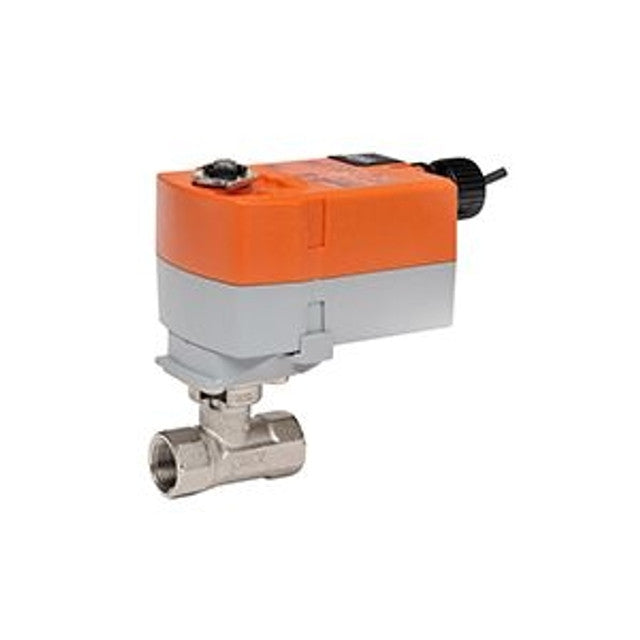

Belimo B219+TFRB24-3 CCV Assembly 2 Way 3/4 in NPT 10 Cv

Product Description

The Belimo B219+TFRB24-3 is a Characterized Control Valve designed for reliable performance in HVAC applications. It features a forged brass body along with a stainless steel ball and stem. With a direct coupled actuator providing 22 in-lb torque, this valve offers flexibility through its floating point control and spring return functionality at 24 VAC.

• Constructed from durable materials for extended service life.
• Maintains efficient flow control in heating and cooling systems.
• Maintenance-free operation ensures ease of use over time.

Product Highlights

This control valve operates well in air handling units and fan coil applications. It maintains optimal performance in hydronic systems with variable flow.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B219+TFRB24-3

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Flow Characteristic: Equal Percentage
• Size: 0.75 inches
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F
• Electrical Connection: 3 ft. 18 GA plenum cable
• Power Consumption: 2.5 W running, 1 W holding
• Degree of Protection: IP42 NEMA 2
