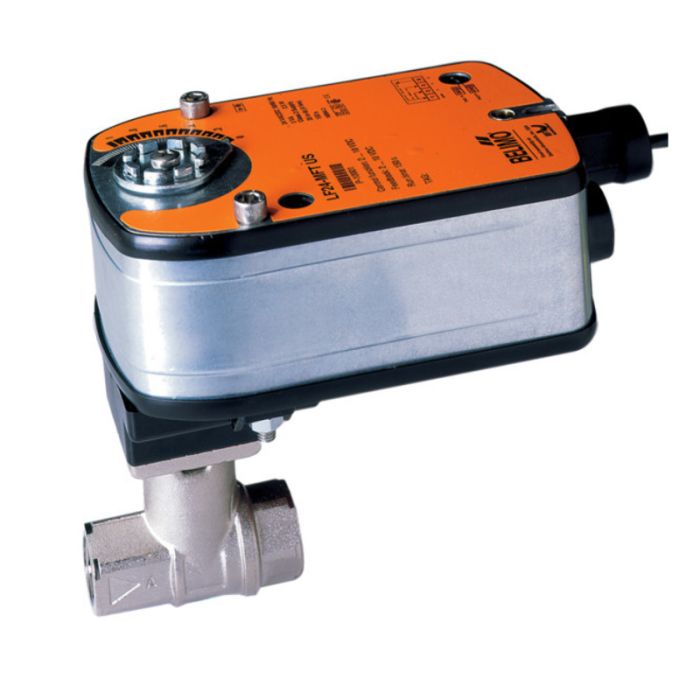

Belimo B219+LF24-MFT CCV Assembly 2 Way 3/4 Inch NPT 10 Cv

Product Description

The Belimo B219+LF24-MFT is a characteristically designed control valve for building automation and HVAC systems. This valve features a two-way configuration and is sized for three-fourths of an inch NPT connections. It is capable of a flow coefficient (Cv) of ten, allowing for efficient fluid control. The valve is made from forged brass with a nickel-plated finish, ensuring durability and a long service life.

• Spring return actuator with a holding torque of thirty-five in-lbs.
• Compatible with chilled or hot water systems up to sixty percent glycol.
• Designed for a voltage of twenty-four volts with modulating capabilities.

Product Highlights

This valve is used in various HVAC applications, making it a versatile component in modern heating and cooling systems. Its reliable construction and technical specifications allow for effective temperature and flow management.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B219+LF24-MFT

Technical Specifications

• Valve Size: 0.75 inches
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 10
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 watt
• Power Consumption (Running): 2.5 watts
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: AC/DC 24V
