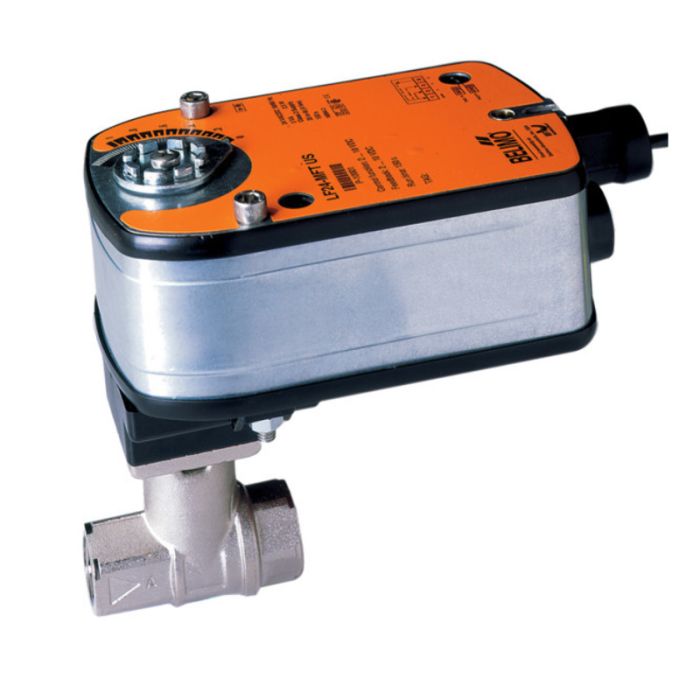

Belimo B219+LF120US CCV Assembly 2 Way, 3/4 in. NPT, 10 Cv

Product Description

The Belimo B219+LF120US is a characterized control valve. It features a forged brass body with nickel plating. This valve includes a stainless steel ball and stem, offering durability and reliability. The direct coupled actuator provides a torque of thirty-five inch-pounds and operates using a spring return fail-safe mechanism with 120 VAC.

• Typical applications include air handling units and fan coil units.
• Maintenance-free design eliminates the need for repacking.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is designed for hydronic systems with variable flow and offers self-cleaning capabilities and zero leakage.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B219+LF120 US

Technical Specifications

• Valve Size: 0.75 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22°F to 122°F
• Power Consumption: 5.5 W running, 3.5 W holding
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 inch conduit connector
• Service: Chilled and hot water, up to 60% glycol
• Degree of Protection: IP54 NEMA 2
