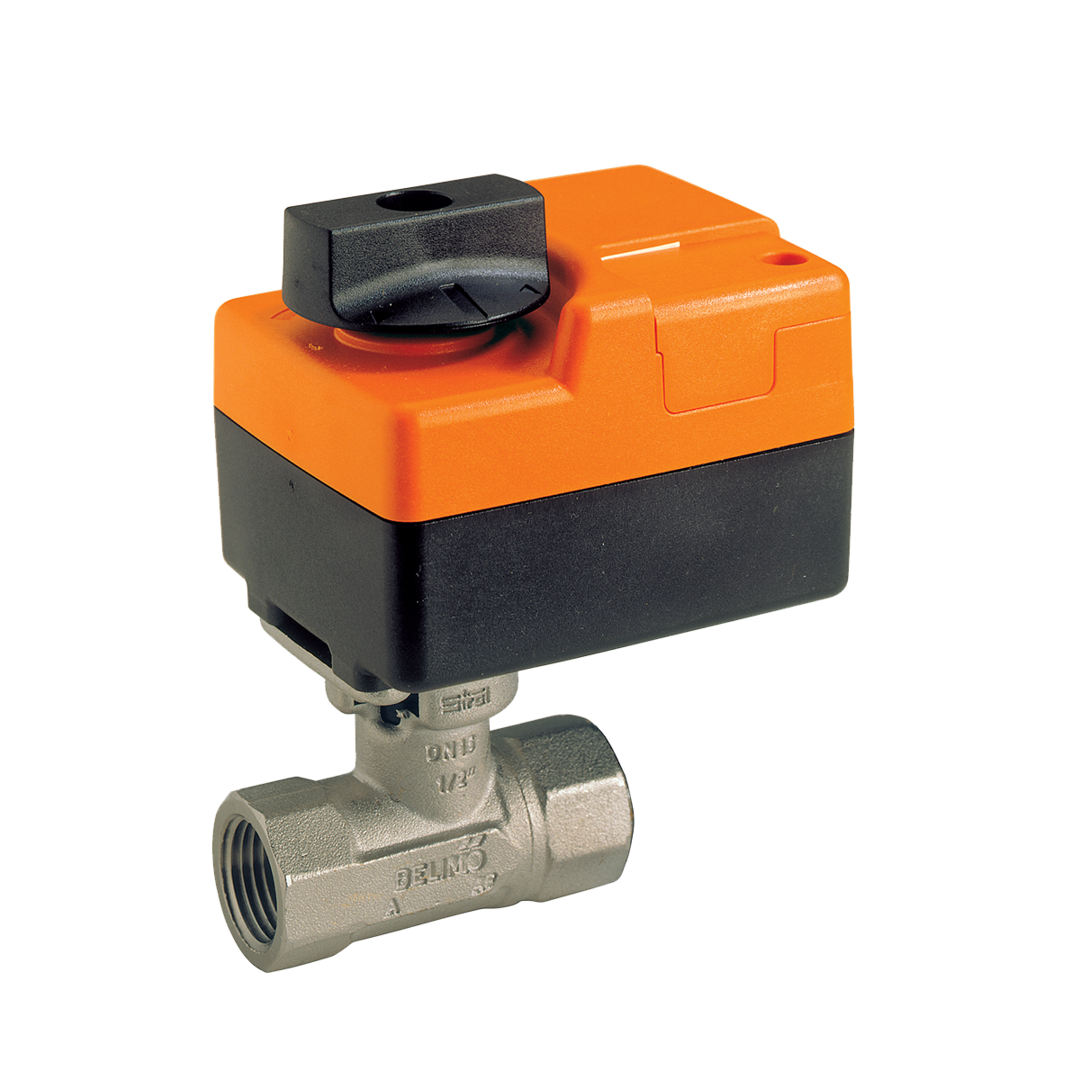

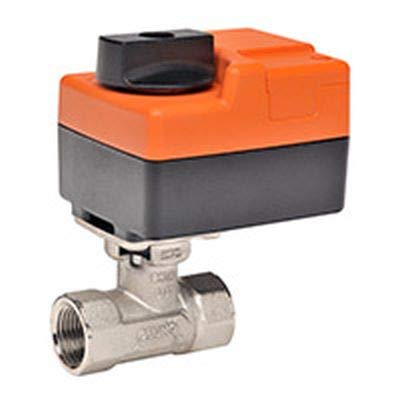

Belimo B218B+TR24-SR-T US Ccv Assembly 2 Way 7.4 Cv

Product Description

The BELIMO B218B+TR24-SR-T US is a characterized control valve (CCV). It is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

The Belimo CCV ensures efficient heating or cooling coil regulation. Its versatility extends to Unit Ventilators, VAV box re-heat coils, and bypass loops.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B218B+TR24-SR-T US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Screw Terminal
• Angle of Rotation: 90
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.75" [20]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC24V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR-T US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 1 VA
• Protection category: IP40
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
• Valve Pattern: 2-Way
• CV Rating: 7.4
• GPM: 14.8 @ 4 psi
• Material: Chrome Plated Brass
• Control Signal: 2-10VDC
• Auxillary Switch: None
• Enclosure: None
• Actuator type: Electric
• Application: Chilled, Hot Water, up to 60% Glycol
• Category: Electric Actuator Valve Assemblies
• Connection type: Screw terminal (for 26 to 14 GA wire)
• Series: Belimo
• Short desc: Characterized Control Valve, 3/4 Inch, 2-Way, 7.4Cv, 24V, Non Fail-Safe
• Size: 3/4 Inch
• Supplier part number: B218B+TR24-SR-T US
• Yorkland id: B218B+TR24-SR-T US
• Fail safe: Non Fail Safe
• Features and benefits: 95 seconds | 18 in-lbs [2 Nm] minimum | No Feedback | NPT female ends | Forged Brass, Nickel Plated
