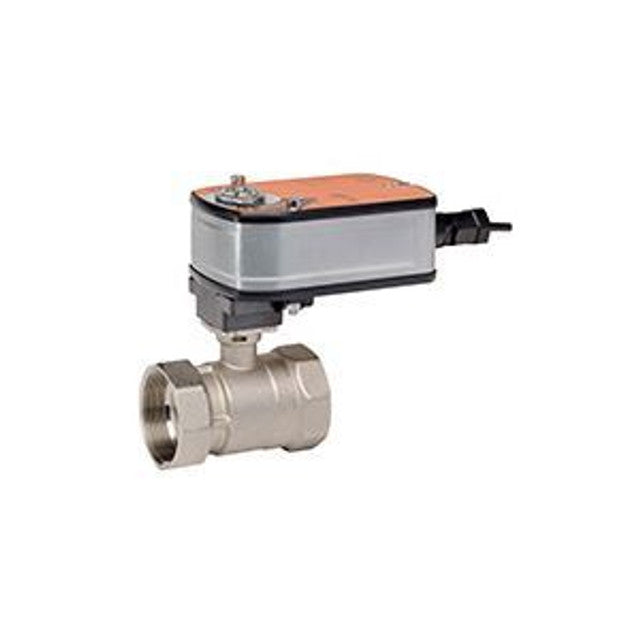

Belimo B218B+LF24-SR CCV 0.75 2 Way 7.4 Cv w/ Spg Rtn 24V 2-10V

Product Description

The Belimo B218B+LF24-SR is a control valve designed for use in air handling units on heating or cooling coils. This model operates effectively in fan coil unit scenarios and enhances the performance of Unit Ventilators and VAV box re-heat coils. It is suitable for hydronic systems with variable flow rates.

• Operates in both chilled and hot water systems up to sixty percent glycol.
• Features a chrome plated brass trim for enhanced durability.
• Offers quick response times with a spring return actuator.

Product Highlights

Reliable for use in HVAC applications, the valve ensures efficient control in various settings.

Product Information

Standard Information

• Brand: Belimo
• MPN: B218B+LF24-SR

Technical Specifications

• Valve Size: 0.75 inches
• Angle of Rotation: 90 degrees
• Cv: 7.4
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
