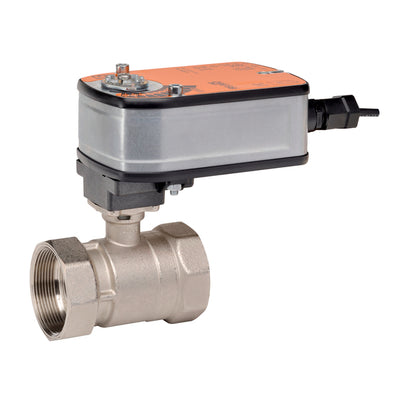

Belimo B218B+LF120 CCV 0.75 2 Way 7.4 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B218B+LF120 is a control valve designed for heating and cooling applications. Its primary function is in air handling units, where it regulates the flow of water through coils. This valve is also effective for fan coil units, unit ventilators, VAV box re-heat coils, and bypass loops.

• Application in hydronic systems with variable flow.
• Spring return actuator type for efficient operation.
• Compatible with chilled or hot water systems.

Product Highlights

The B218B+LF120 is a versatile 2-way valve, suitable for various HVAC applications. It operates at a voltage of one hundred twenty volts and offers controlled flow for optimal system efficiency.

Product Information

Standard Information

• Brand: Belimo
• MPN: B218B+LF120

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 7.4
• Pattern: 2-way
• Fluid: Chilled or hot water up to sixty percent glycol
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Pressure Independent: No
• Trim: Chrome plated brass
• Actuator Type: Spring return
• Voltage AC/DC: AC 120 V
