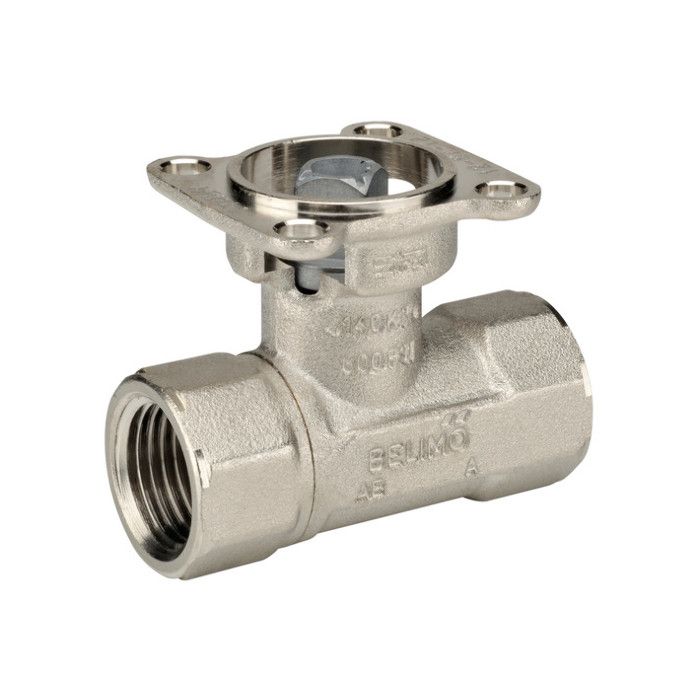

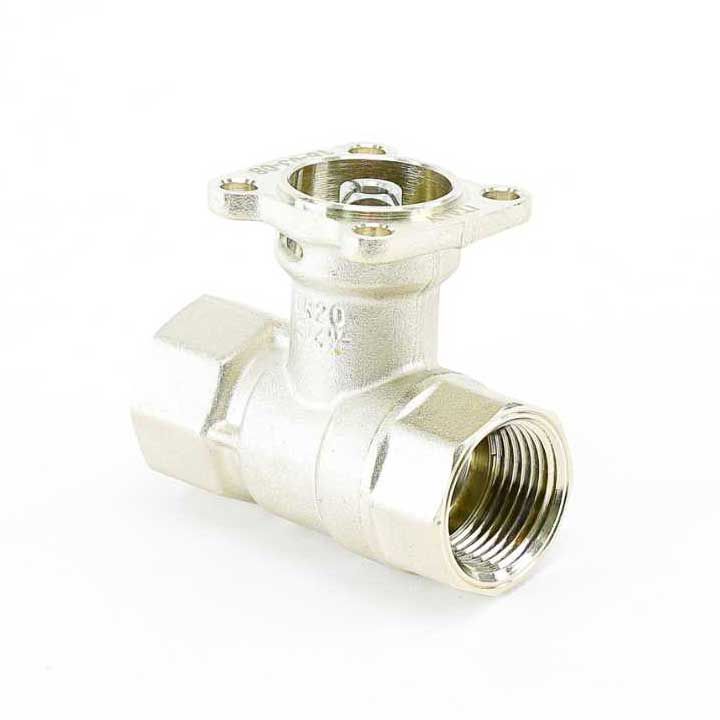

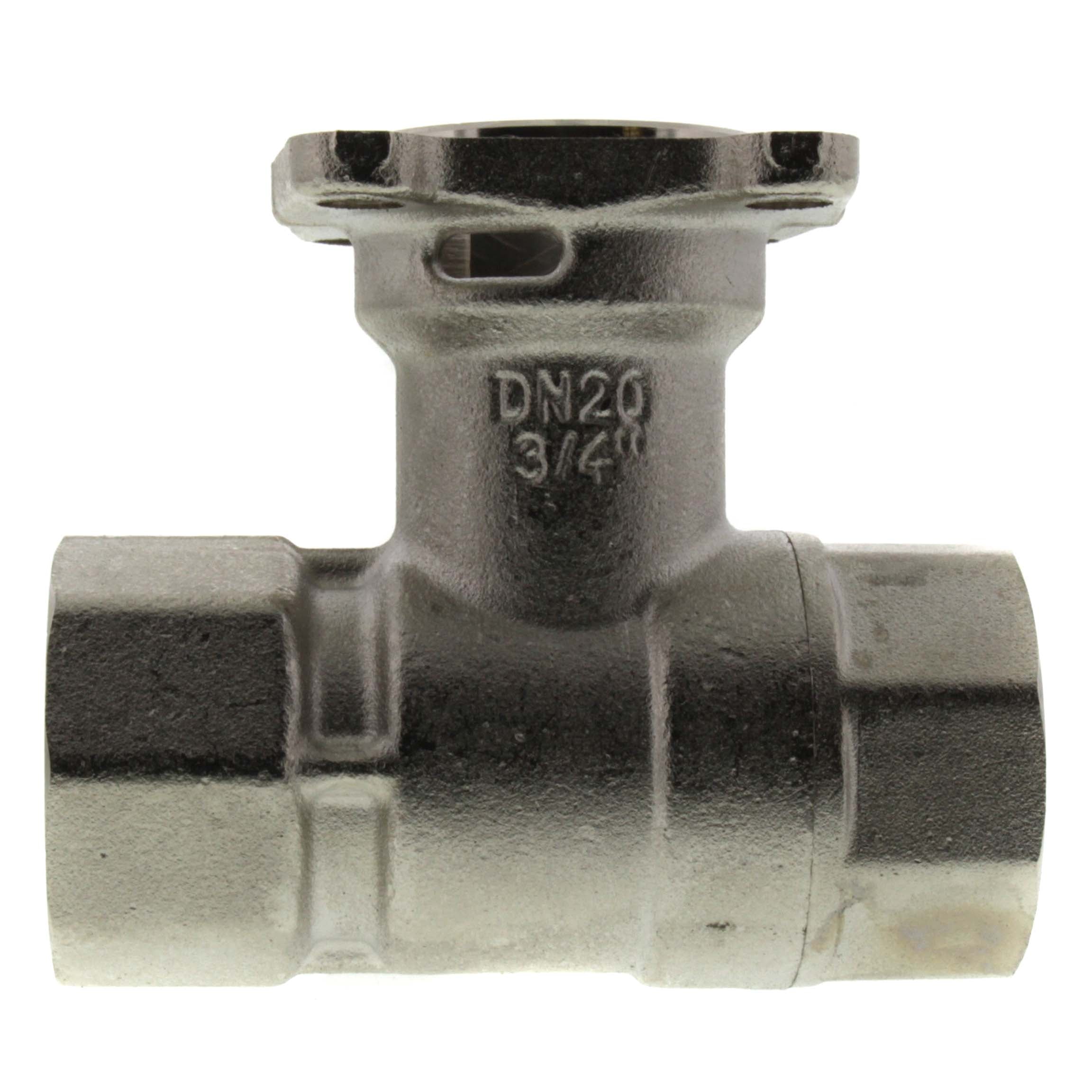

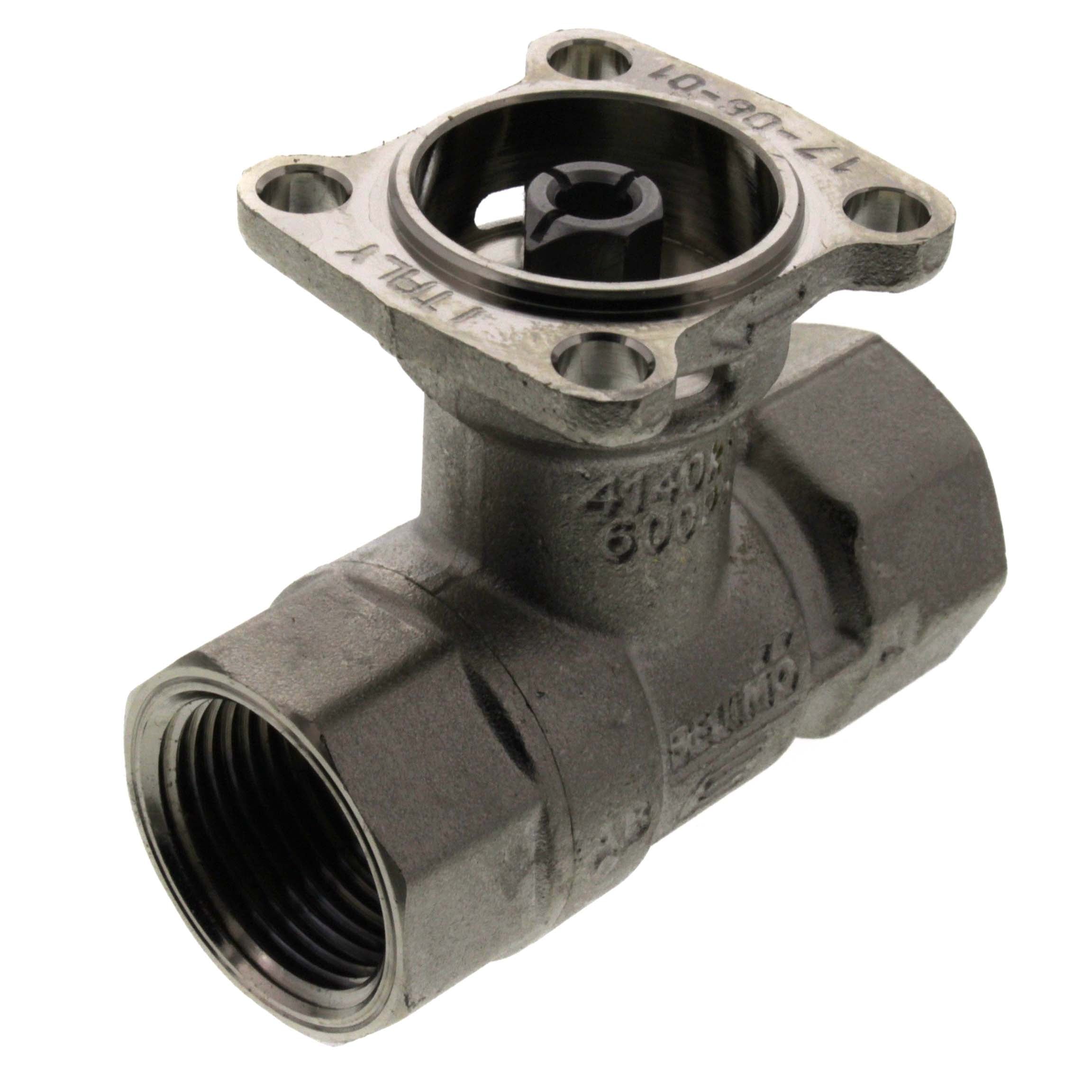

Belimo B218 CCV 2 Way 3/4 In NPT 7.4 Cv

Product Description

The Belimo B218 is a two-way characterized control valve designed for a range of HVAC applications. This valve features a three-quarter inch NPT connection and a flow capacity of 7.4 Cv. It is constructed from forged brass with a stainless steel ball and stem, making it suitable for use in chilled or hot water systems, including those with up to sixty percent glycol.

• Suitable for hydronic systems with variable flow
• Self-cleaning design minimizes maintenance
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

The Belimo B218 is a reliable choice for maintaining control over heating and cooling applications, ensuring efficient operation in air handling and fan coil units.

Product Information

Standard Information

• Brand: Belimo
• MPN: B218

Technical Specifications

• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Trim Material: Stainless steel
• Valve Size: 0.75 inches
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Weight: 0.7 pounds
• Dimensions: 2.5 inches x 2.7 inches x 1.5 inches
