Product Description

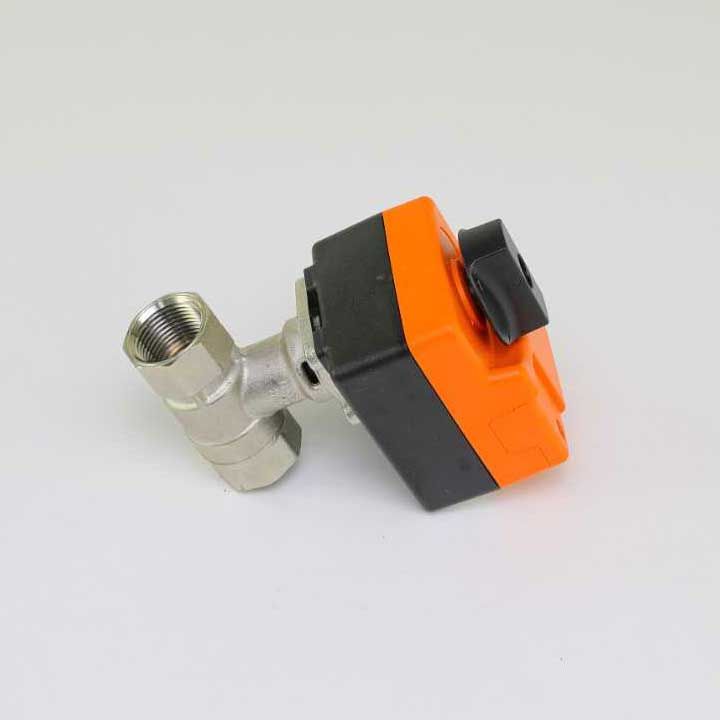

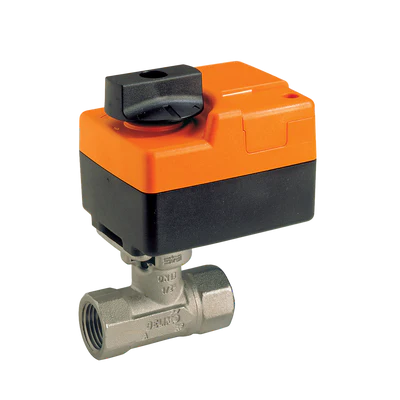

The Belimo B217B+TR24-SR-T is a 2-way characterized control valve (CCV) with a 0.75 inch valve size. It features a 4.7 Cv and comes with a non-spring return actuator. The valve is suitable for chilled or hot water applications with up to 60% glycol. It operates on 24V AC/DC and can be controlled via a DC 2-10V signal.
- 4.7 Cv
- 0.75 inch valve size
- 24V AC/DC
Product Highlights
Belimo characterized control valve with non-spring return actuator, suitable for chilled or hot water applications.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B217B+TR24-SR-T
Technical Specifications
- Valve Specifications
-
Angle of Rotation: 90
-
Controllable Flow Range: 75B0
-
Cv: 4.7
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: No
-
Trim: Chrome plated brass
-
Valve Size: 0.75 inch
- Actuator Specifications
-
Actuator Type: Non fail-safe
-
Control Type: DC 2...10 V
-
Degree of Protection: IP40 NEMA 1
-
Electrical Connection: Terminals
-
Manual Override: Push down handle
-
Power Consumption (Running): 0.5 W
-
Running Time (Motor): 90 s / 90B0
-
Voltage AC/DC: AC/DC 24 V
