Product Description

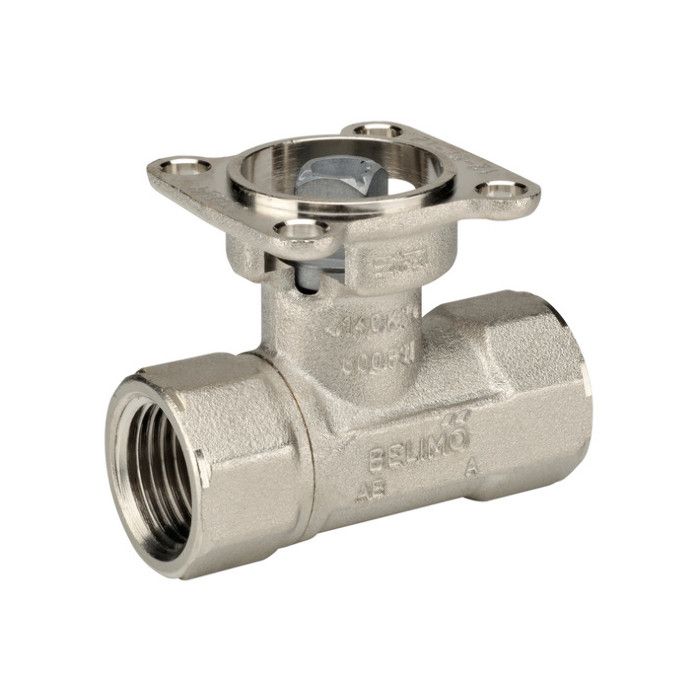

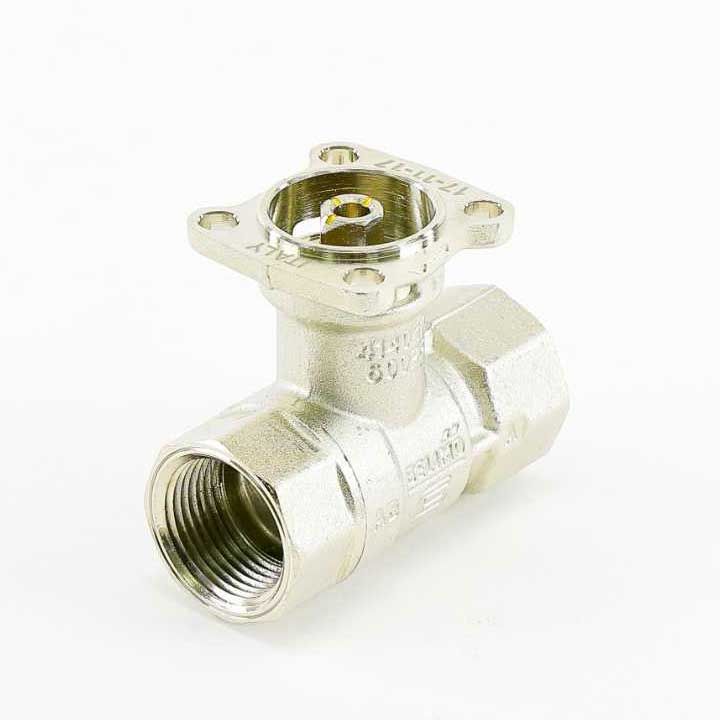

The Belimo B217B is a characterized control valve designed for hydronic systems with variable flow. This valve is commonly used in air handling units on heating or cooling coils, and fan coil units as well. It is suitable for applications such as unit ventilators, VAV box reheat coils, and bypass loops.
- Compatible with chilled or hot water systems.
- Built to maintain optimal flow control with a Cv rating of 4.7.
- Internal thread design for easy installation.
Product Highlights
This valve provides stability in control and efficient energy consumption. Its unique design includes a characterizing disc that ensures an equal percentage flow characteristic.
Product Information
Standard Information
Technical Specifications
-
Controllable Flow Range: 75B0
-
Cv: 4.7
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Chrome plated brass
-
Valve Size: 0.75 [20]
