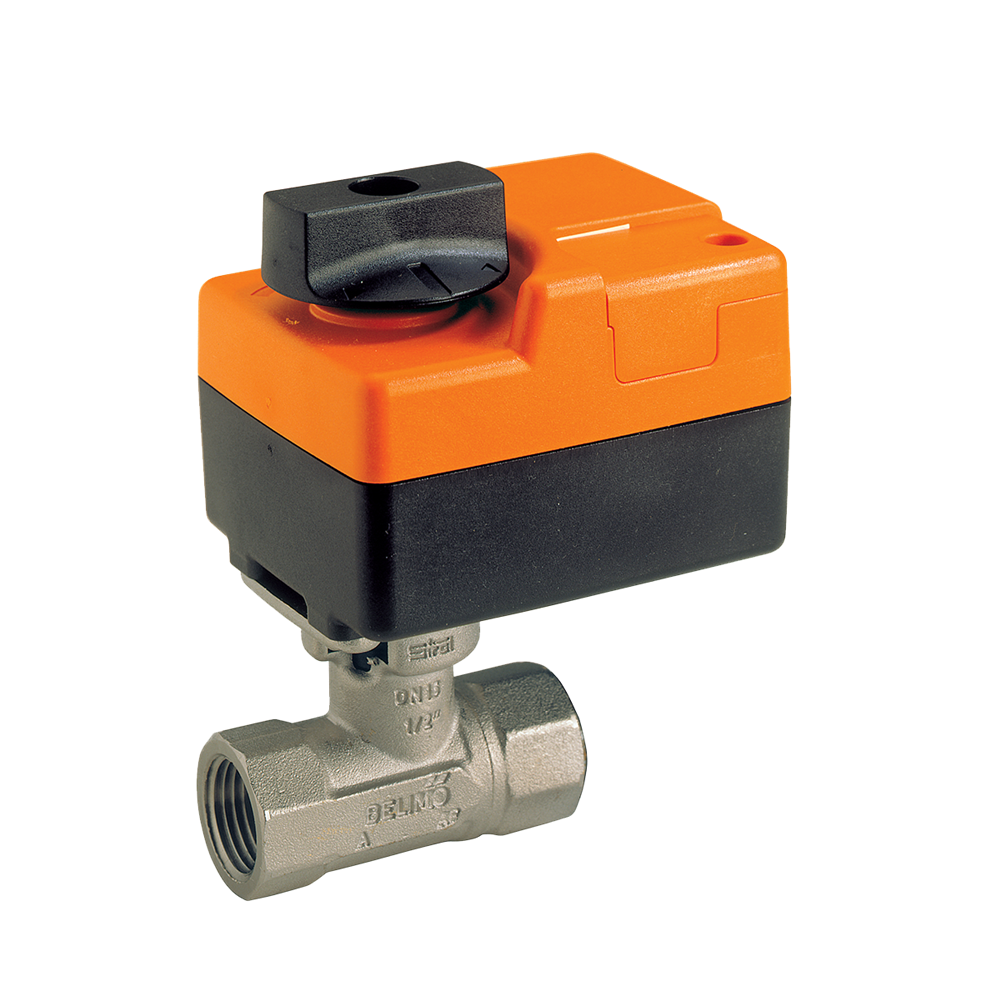

Belimo B217+TR24-SR US Ccv Assembly 2 Way 4.7 Cv

Product Description

The BELIMO B217+TR24-SR US is a characterized control valve assembly. It is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This ball valve design offers self-cleaning and zero leakage. It is rated for water temperatures up to 250 F. Maintenance free-no repacking required after being in service for an extended period of time.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B217+TR24-SR US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv: 4.7
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.75" [20]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Torque: 18 in-lb
• Supply Voltage (Nominal): 24 VAC
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 1 VA
• Direction Of Motion Motor: selectable with switch
• Protection category: IP40
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
• Valve Pattern: 2-Way
• CV Rating: 4.7
• GPM: 9.4 @ 4 psi
• Material: Stainless Steel
• Control Signal: 2-10VDC
• Auxillary Switch: None
• Enclosure: None
