Product Description

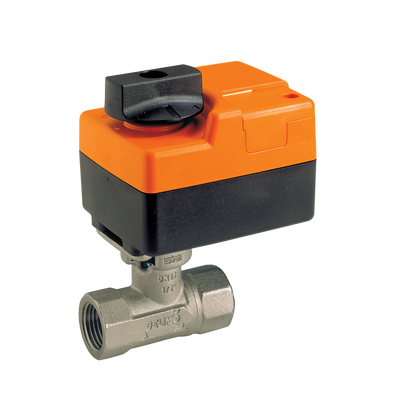

The Belimo B217+TR24-SR is a characterized control valve, ideal for air handling units and fan coil systems. This valve features a size of zero point seventy-five inches and operates on a 24-volt system with a control signal of 2 to 10 volts. It is suitable for both heating and cooling applications, ensuring flexibility in hydronic systems.
- Designed for use in air handling units.
- Composed of stainless steel for durability.
- Operates with a controllable flow range of seventy-five degrees.
Product Highlights
This valve is essential for regulating flow in various HVAC applications, including VAV box reheat coils.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B217+TR24-SR
Technical Specifications
-
Angle of Rotation: 90
-
Controllable Flow Range: 75B0
-
Cv: 4.7
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Stainless steel
-
Valve Size: 0.75 [20]
-
Actuator Type: Non fail-safe
-
Control Type: DC 2...10 V
-
Degree of Protection: IP40 NEMA 1
-
Electrical Connection: cable
-
Manual Override: Push down handle
-
Power Consumption (Running): 0.5 W
-
Running Time (Motor): 90s / 90B0
-
Voltage AC/DC: AC/DC 24 V
