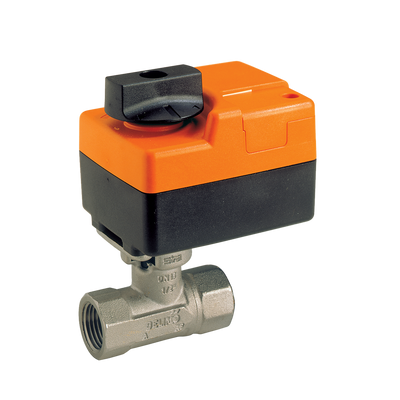

BELIMO B217+TR24-3 CCV 0.75 INCH 2 Way 4.7 Cv Non-Spg 24V Floating Valve

Product Description

Optimized for professionals, the BELIMO B217+TR24-3 valve ensures efficient control over HVAC systems. Known for reliability, this valve offers enhanced performance for air handling and fan coil units.

• Designed for use in both heating and cooling applications.
• Supports a wide range of media including chilled or hot water up to 60% glycol.
• Features a non-spring, 24V floating actuator for easy installation and operation.

Product Highlights

With a Cv of 4.7, this two-way valve supports a controllable flow range, making it ideal for variable flow hydronic systems. It’s equipped with a stainless steel trim and an internal thread end fitting for durability and secure connections.

Product Information

Standard Information

• Valve Size: 0.75 inches
• Actuator Type: Non fail-safe

Technical Specifications

• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• End Fitting: Internal thread
• Control Type: Floating/3-point
• Voltage: AC 24V
• Manual Override: Push down handle
• Angle of Rotation: 90 degrees
• Degree of Protection: IP40 NEMA1
