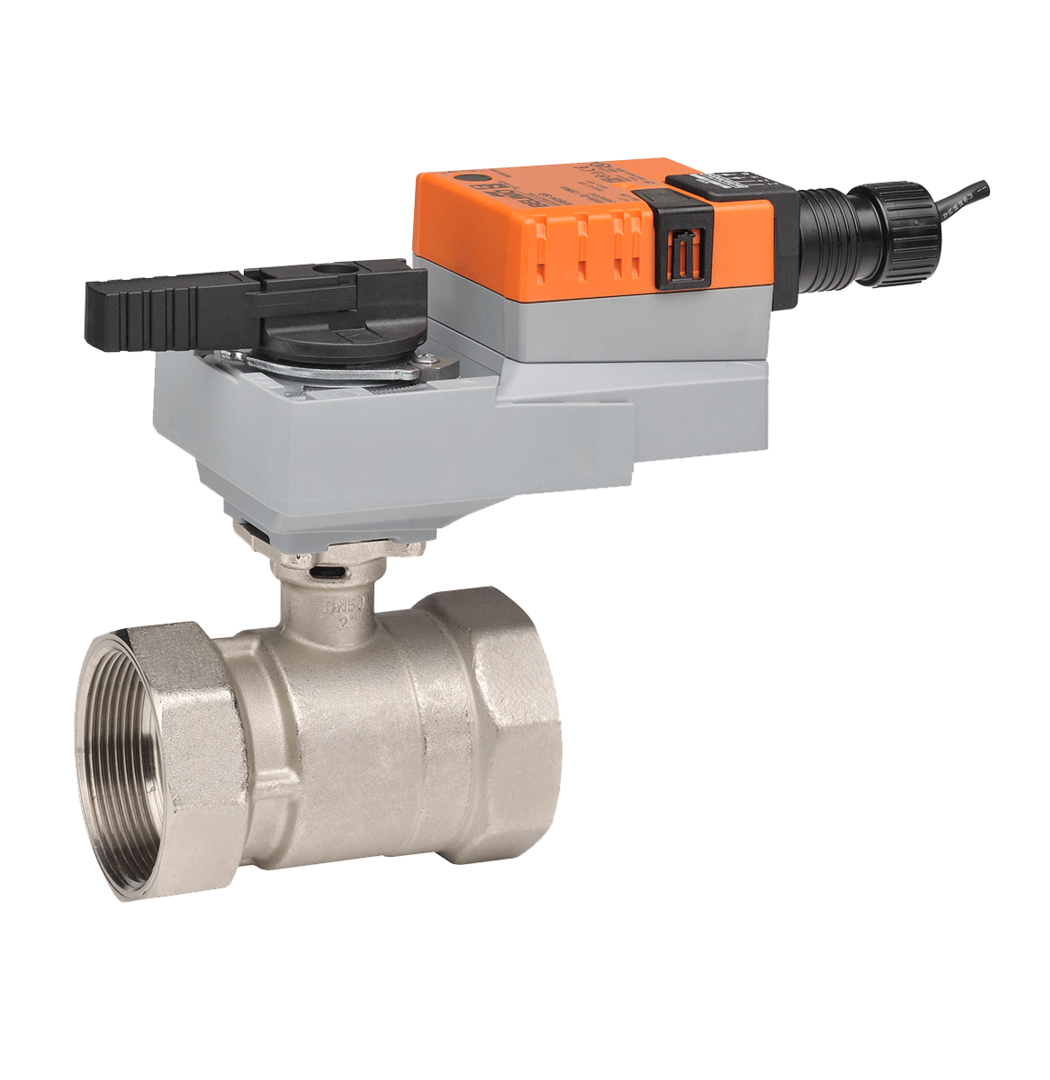

Belimo B217+LRX24-MFT CCV Assembly 2 Way, 3/4 in. NPT, 4.7 Cv

Product Description

The Belimo B217+LRX24-MFT is a characterized control valve designed for heating and cooling systems. It features forged brass, a nickel-plated brass body, and stainless steel components. This assembly is suitable for chilled and hot water applications and operates efficiently in hydronic systems.

• Suitable for air handling units and fan coil units.
• Ball valve design ensures self-cleaning and zero leakage.
• Maintenance-free with no need for repacking after extensive use.

Product Highlights

This valve provides modulating control for various HVAC applications and is designed with MFT technology for enhanced functionality.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217+LRX24-MFT

Technical Specifications

• Valve Size: 0.75 inches
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F
• Power Consumption: 2.5 W Running, 1.2 W Holding
• Electrical Connection: 18 GA plenum rated cable
• Service Fluid: Chilled or hot water, up to 60% glycol
• Angle of Rotation: 90 degrees
