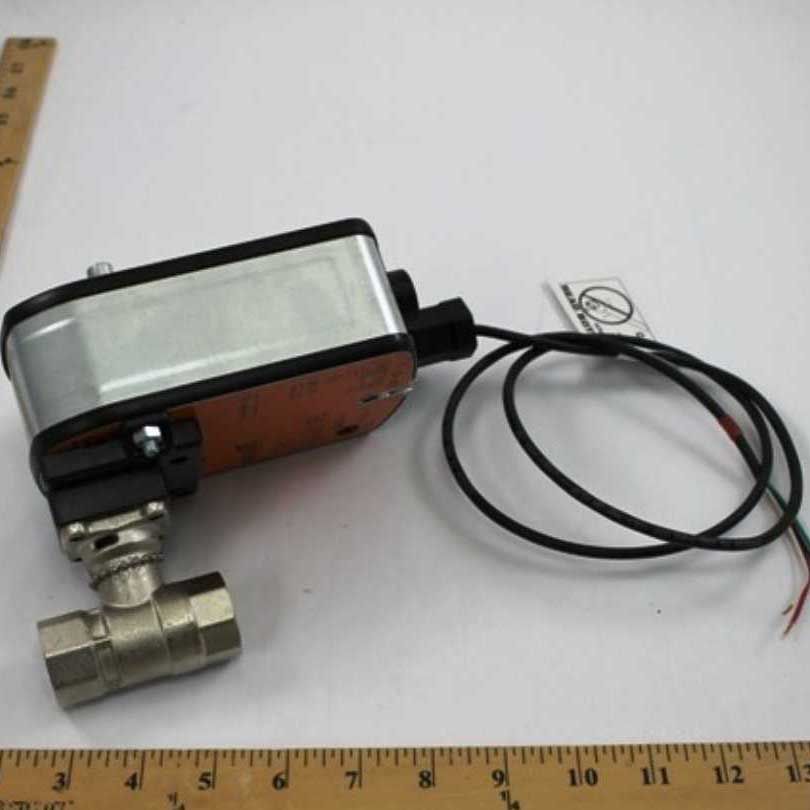

Belimo B217+LF24-SR CCV 0.75 Inch 2 Way 4.7 Cv with Spring Return 24V 2-10V

Product Description

The Belimo B217+LF24-SR CCV 0.75 Inch 2-Way Valve with Spring Return is used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. It is also suitable for use in Unit Ventilators, VAV box reheat coils, and bypass loops. This valve is ideal for a hydronic system with variable flow.

• Spring return actuator
• Two-way pattern
• Voltage: 24V AC/DC

Product Highlights

The Belimo B217+LF24-SR features a spring return actuator, making it reliable for various applications. It is suitable for chilled or hot water systems with up to 60% glycol, making it versatile for different environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217+LF24-SR

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 4.7
• Pattern: 2-way
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Voltage AC/DC: 24V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds per 90 degrees
• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75
• Pressure Independent: No
• Electrical Connection: Cable
