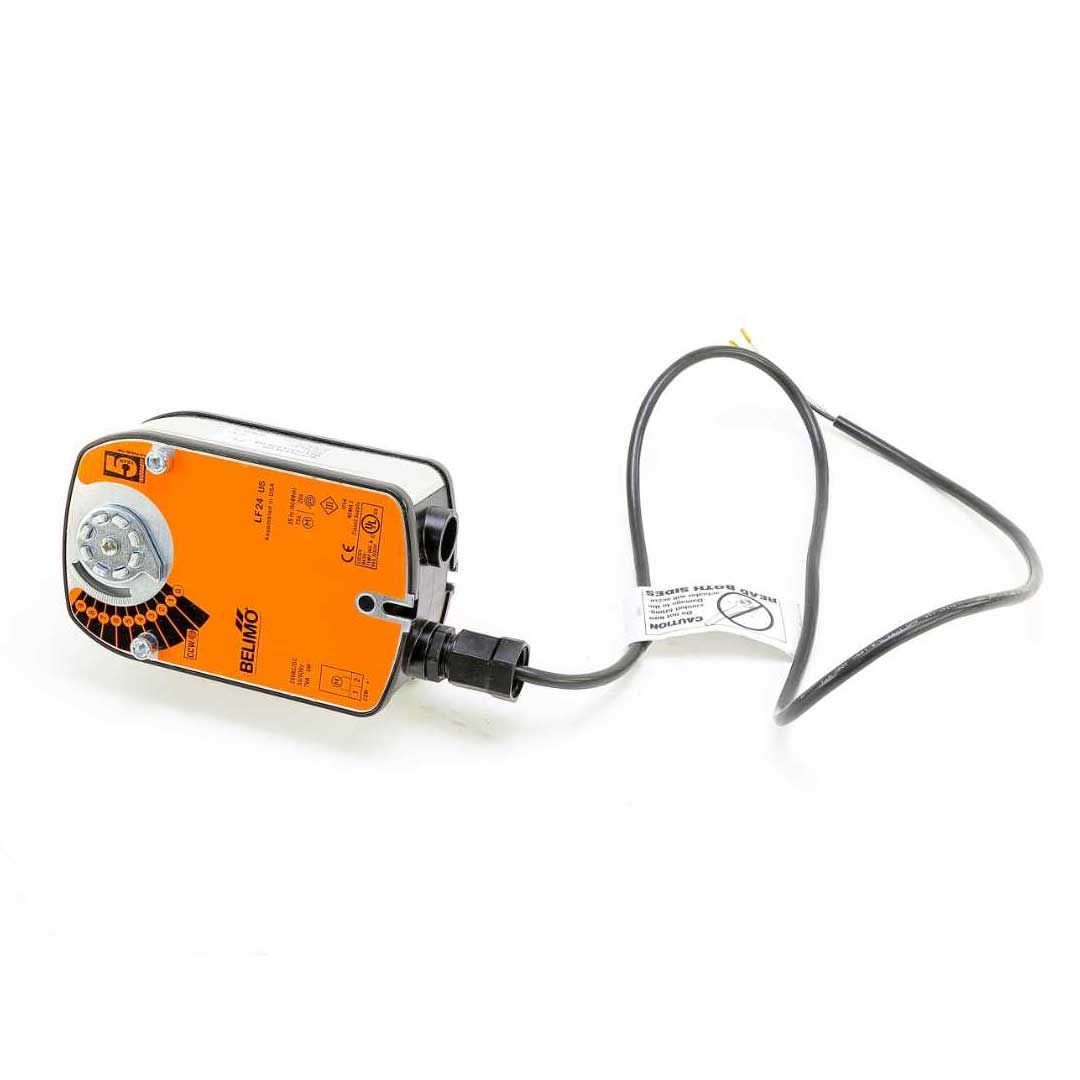

Belimo B217+LF24 CCV 0.75 2 Way 4.7 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B217+LF24 CCV 0.75 inch 2-Way Valve with a 4.7 Cv rating is ideal for various HVAC applications. The motorized actuator provides reliable performance for your heating or cooling systems.

• 2-way valve with a 0.75 inch size
• 4.7 Cv rating
• Includes motorized actuator

Product Highlights

This valve is commonly used in air handling units on heating or cooling coils and fan coil units. Suitable for unit ventilators, VAV box re-heat coils, and bypass loops. It fits hydronic systems with variable flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217+LF24

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 4.7
• Pattern: 2-way
• End Fitting: Internal thread
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24V
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54 NEMA 2
• Running Time (Motor): 75 seconds / 90 degrees
• Running Time (Fail-safe): <25 seconds
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Electrical Connection: Cable
• Pressure Independent: NO
