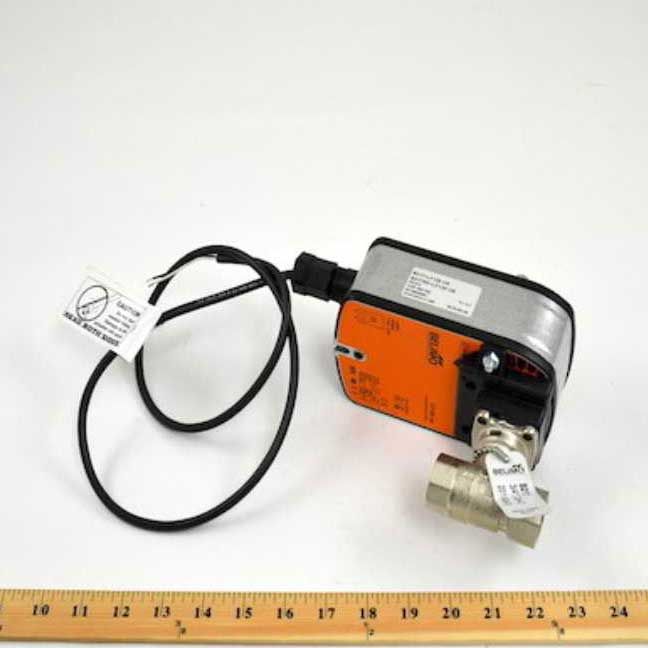

Belimo B217+LF120 CCV 0.75 2 Way 4.7 Cv w/ Spg Rtn 120V

Product Description

The Belimo B217+LF120 is a characterized control valve designed for use in air handling units on heating or cooling coils. This valve is used in various applications, including fan coil units, unit ventilators, VAV box reheat coils, and bypass loops. It is compatible with hydronic systems that have variable flow, making it a versatile choice for HVAC professionals.

• 2-way valve with a Cv rating of 4.7
• Spring return actuator for easy operation
• Designed for chilled or hot water applications, up to sixty percent glycol

Product Highlights

This valve features a compact design, allowing for easy installation in tight spaces. The stainless steel trim enhances durability, making it suitable for long-term operation in various environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217+LF120

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 4.7
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• End Fitting: Internal thread
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Voltage: AC120V
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Motor): 75 seconds
• Degree of Protection: IP54 NEMA2
• Pressure Independent: No
