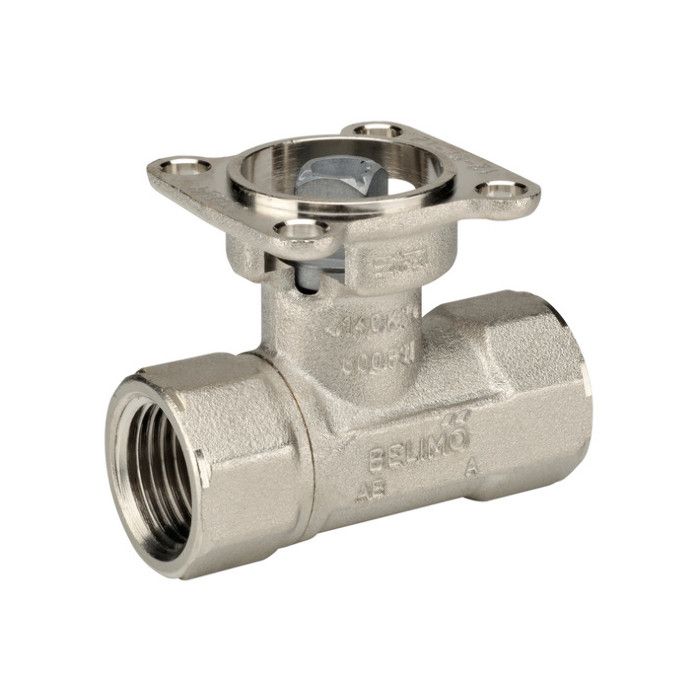

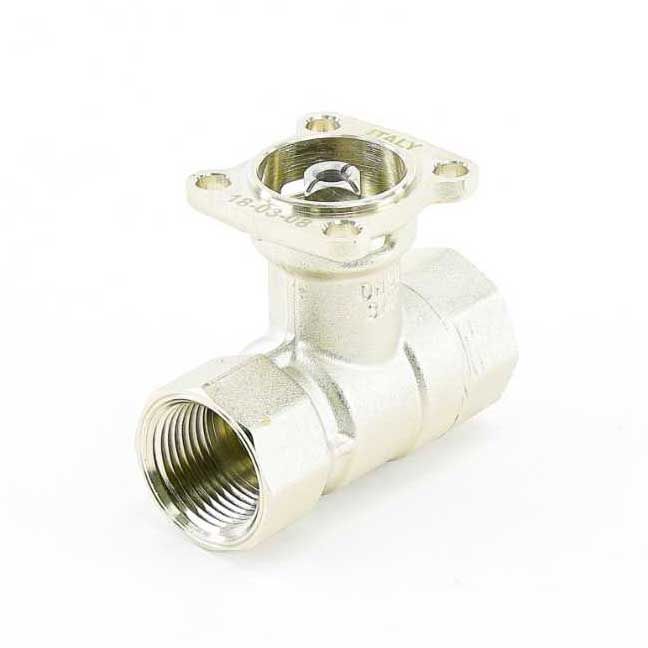

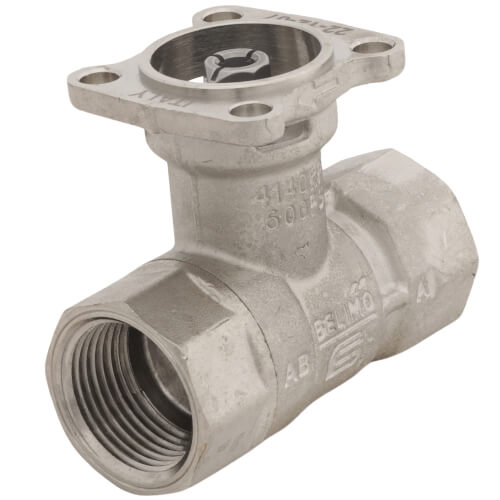

Belimo B217 CCV, 2 Way, 3/4 in NPT, 4.7 Cv

Product Description

The Belimo B217 is a characterized control valve designed for 3/4 inch NPT applications with a flow capacity of 4.7 Cv. This valve is suitable for use in air handling units on heating or cooling coils and fan coil units. It effectively manages variable flow in hydronic systems.

• Ball valve design minimizes leakage and self-cleans for better durability.
• Rated for water temperatures up to 250 F with a close-off pressure of 200 psi.
• Construction includes a forged brass body and stainless steel ball and stem.

Product Highlights

This valve provides enhanced control stability with its equal percentage flow characteristic, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Fluid Types: Chilled or hot water, up to 60% glycol
• Valve Size: 0.75 inches
• End Fitting: Internal thread
• Trim Material: Stainless Steel
• Pressure Independent: No
• Controllable Flow Range: 75B0
