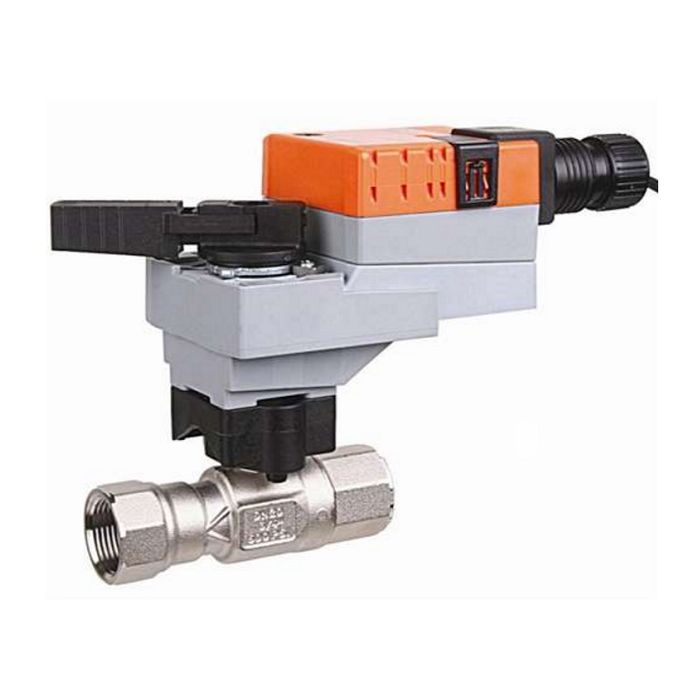

Belimo B216+LRB24-SR-T CCV Valve 0.5 Inch 2 Way 16 Cv Non-Spring Return 24V Modulating

Product Description

The Belimo B216+LRB24-SR-T valve is engineered for precise flow control in HVAC systems. Its modulating technology ensures optimum performance tailored to a variety of applications.

• 2-way internal thread design facilitates efficient fluid management in systems using up to 60% glycol.
• Robust stainless steel trim increases longevity and reliability under varied environmental conditions.
• Electrical modulation via DC 2-10V allows for seamless integration into automated systems.

Product Highlights

Designed with a non-fail-safe actuator and IP54 NEMA 2 protection, this valve guarantees both operational safety and environmental compatibility.

Technical Specifications

• Valve Size: 0.5 inches
• Flow Coefficient (Cv): 16
• Control Type: DC 2-10V
• Angle of Rotation: 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Electrical Connection: Terminals
• Operating Voltage: AC/DC 24V
• Running Time (Motor): 90 seconds
