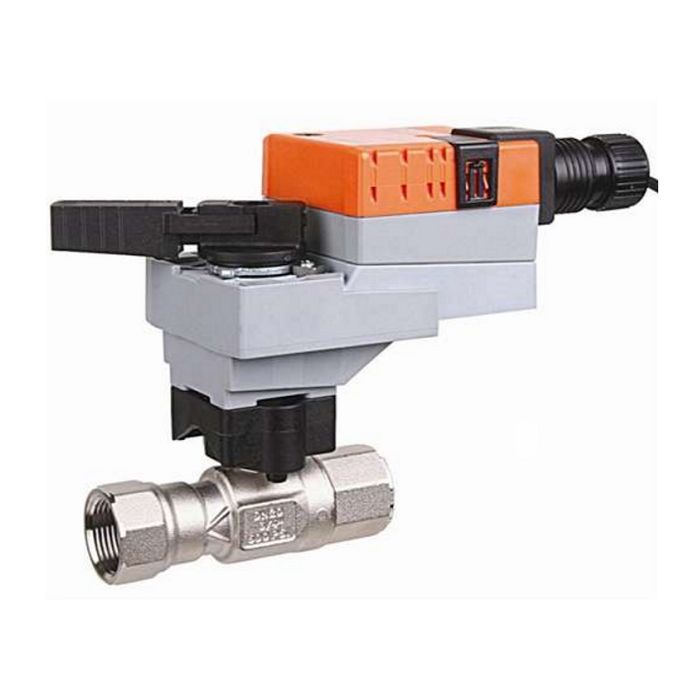

Belimo B216+LRB24-3-T CCV 0.5 Inch 2 Way 16 Cv Non-Spring 24V Floating Valve

Product Description

The Belimo B216+LRB24-3-T is a high-quality characterized control valve designed for precision flow control in HVAC systems. This model offers robust performance with its 0.5 inch two-way design and 16 Cv rating. Utilizing a 24V floating non-spring return actuator, it provides reliable operation and easy integration into various applications.

• Ideal for regulating flow in heating and cooling applications.
• Constructed with a stainless steel trim for durability and corrosion resistance.
• External push button manual override for enhanced operational control.

Product Highlights

This valve features an angle of rotation of 90 degrees and is designed for use with chilled or hot water up to 60% glycol. Its non-fail safe actuator ensures consistent performance in diverse conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: B216+LRB24-3-T

Technical Specifications

• Valve Size: 0.5 inches
• Cv Rating: 16
• Control Type: Floating/3-point
• Voltage: AC/DC 24V
• Pressure Independent: No
• Power Consumption (Running): 1.5 W
• Power Consumption (Holding): 0.2 W
• Actuator Type: Non fail-safe
