Product Description

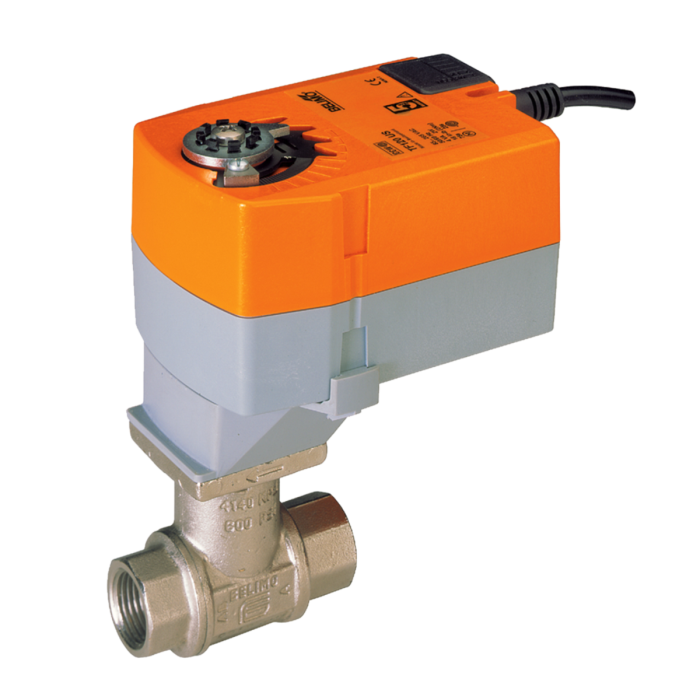

The Belimo B216B+TFRB24-SR is a Characterized Control Valve designed for various heating and cooling applications. This product features a 0.5 inch NPT connection and is rated at 16 Cv. It operates with a direct coupled actuator that utilizes a control signal of 2 to 10 VDC or 4 to 20 mA.
- Ideal for air handling units and fan coil units.
- Compatible with hydronic systems having variable flow.
- Self-cleaning ball valve design prevents leakage.
Product Highlights
Reliable control in water systems and easy integration with existing setups.
Product Information
Standard Information
-
Brand: Belimo
-
Part Number: B216B+TFRB24-SR
Technical Specifications
-
Housing: NEMA 2, IP42, UL Enclosure Type 2
-
Service: Chilled, hot water, up to 60% glycol
-
Power Consumption: 2 W running, 1 W holding
-
Close-Off Pressure: 200 psi
-
Flow Characteristic: Equal percentage
-
Operating Conditions: -22 F to 122 F (-30 C to 50 C)
-
Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit connector
-
Angle of Rotation: 95 degrees
