Product Description

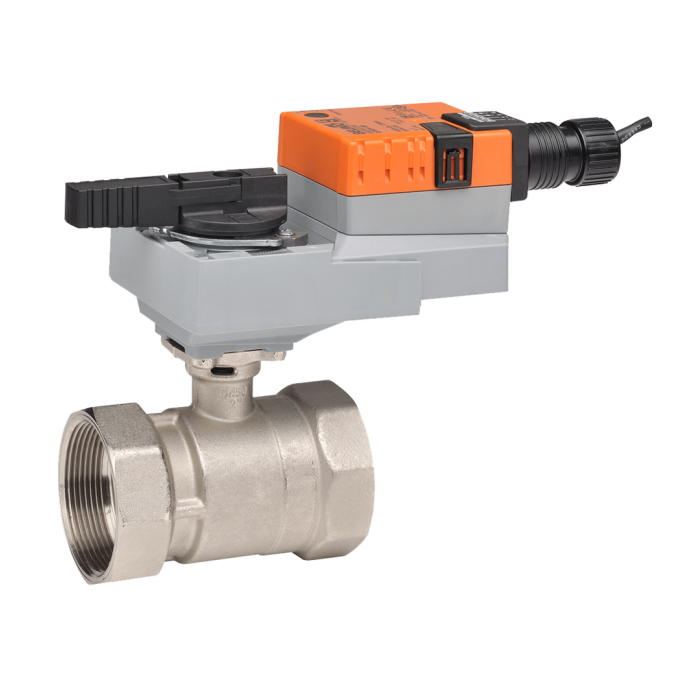

The Belimo B216B+LRB24-SR-T is a characterized control valve designed for use in HVAC systems. This valve is suitable for heating and cooling applications, making it ideal for hydronic systems with variable flow. Its direct coupled actuator operates on 24 VAC and can modulate based on a control signal ranging from 2 to 10 VDC or 4 to 20 mA. The valve is built with a forged brass body, ensuring durability and reliability in various conditions.
- Typical applications include air handling units and fan coil systems.
- Offers self-cleaning features and zero leakage.
- Maintenance-free design with no need for repacking.
Product Highlights
This valve provides easy integration into existing systems while maintaining performance and safety standards. The actuator ensures precise control in modulating applications.
Product Information
Standard Information
-
Brand: Belimo
-
Part #: B216B+LRB24-SR-T
Technical Specifications
-
Housing: NEMA Type 1
-
Service: Chilled, Hot Water, Up to 60% Glycol
-
Power Consumption: 1.5 W Running, 0.2 W Holding
-
Close-Off Pressure: 200 psi
-
Flow Characteristic: Equal Percentage
-
Operating Conditions: -22 F to 122 F (-30 C to 50 C)
-
Electrical Connection: Screw Terminal
-
Angle of Rotation: 90 degrees
