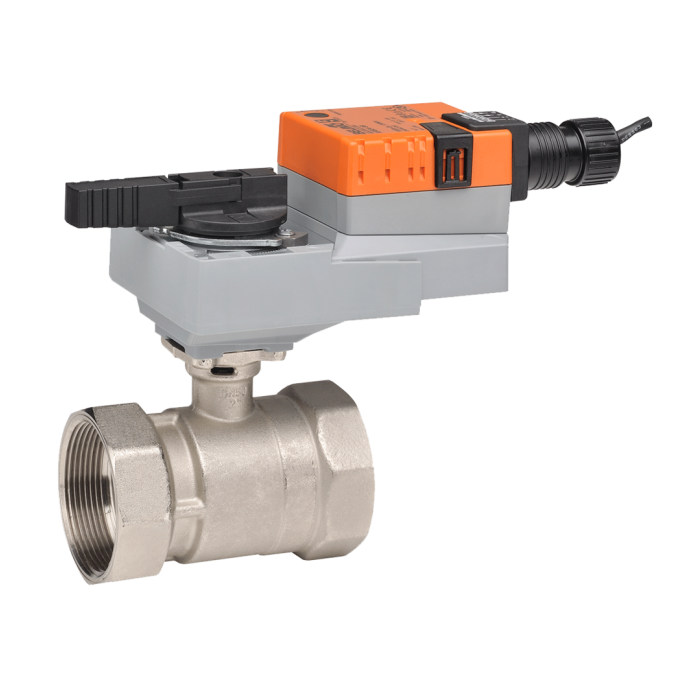

Belimo B216B+LRB24-SR CCV Assembly 2 Way 1/2 In. NPT 16 Cv

Product Description

The Belimo B216B+LRB24-SR is a characterized control valve designed for use in HVAC systems. It features a compact design that suits various applications including air handling units and fan coil units. The valve operates effectively in both heating and cooling systems.

• Flow range of 16 Cv
• Compatible with DC 2 to 10 V control signals
• Constructed with nickel plated and chrome plated components for durability

Product Highlights

This valve integrates seamlessly with hydronic systems featuring variable flow, allowing for efficient temperature control in chilled and hot water applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B216B+LRB24-SR

Technical Specifications

• Power Consumption: 1.5 W running, 0.4 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA plenum cable
• Valve Size: 0.5 inches
• Pattern: 2-way
• End Fitting: Internal thread
