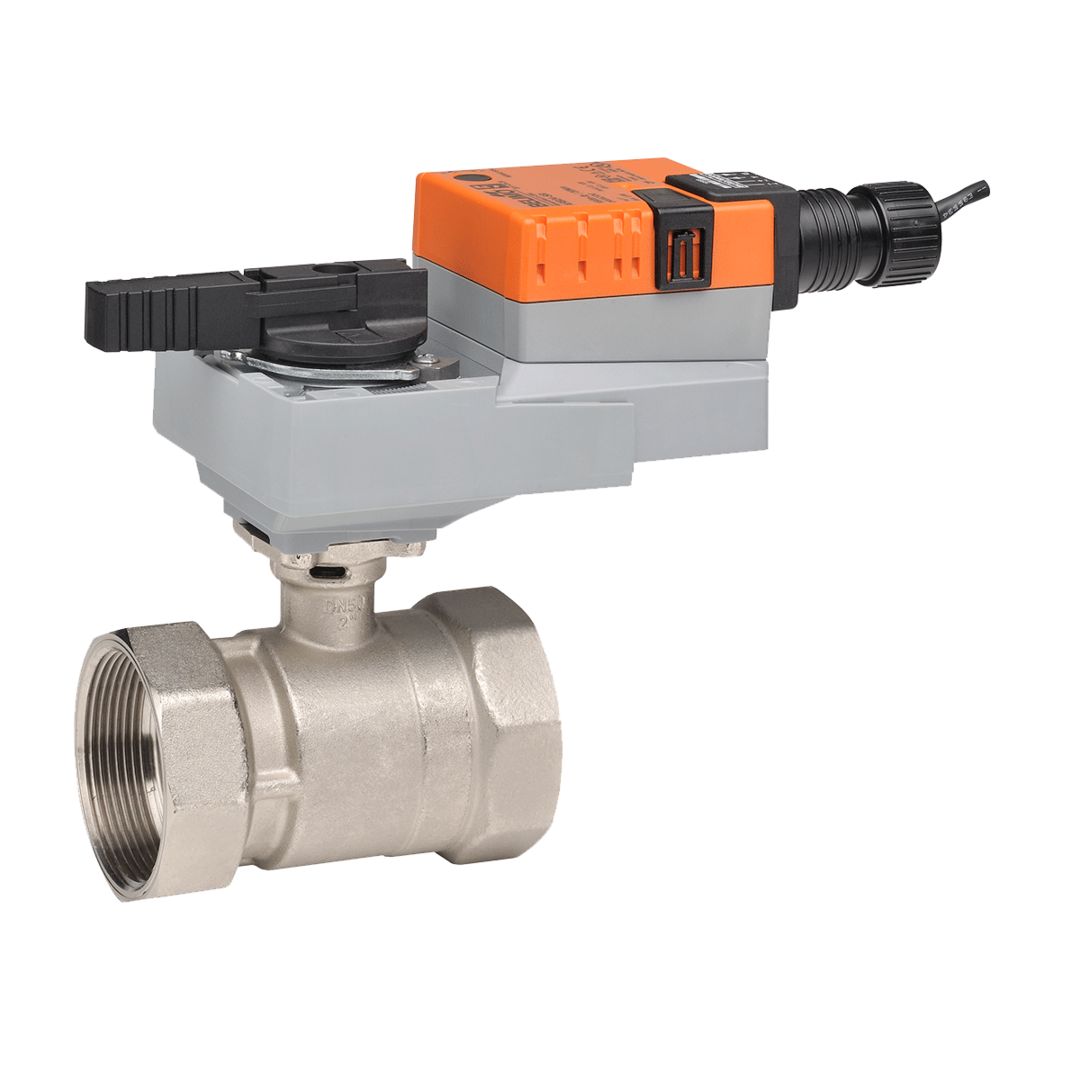

Belimo B216B+LRB120-3 CCV Assembly 2 Way 1/2 in NPT 16 Cv

Product Description

The Belimo B216B+LRB120-3 is a characterized control valve specifically designed for multiple HVAC applications. The valve features a nickel-plated brass body with a chrome-plated brass ball and stem. It operates with a non-fail-safe actuator and is suitable for either on/off or floating point controls.

• Non-fail-safe direct coupled actuator
• Compatible with chilled or hot water up to sixty percent glycol
• Voltage range of one hundred to two hundred forty volts

Product Highlights

The Belimo B216B+LRB120-3 valve is an essential component in maintaining effective and efficient HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B216B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches [15]
• Cv: 16
• Angle of Rotation: 90 degrees
• Fluid Type: Chilled or hot water, up to 60% glycol
• End Fitting: Internal thread
• Control Type: Floating/3-point
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2 W
• Degree of Protection: IP54 NEMA 2 UL enclosure type 2
• Voltage AC/DC: AC 100...240 V
