Belimo B216+LRB24-3-S CCV Assembly 2 Way 1/2 in NPT 16 Cv

Product Description

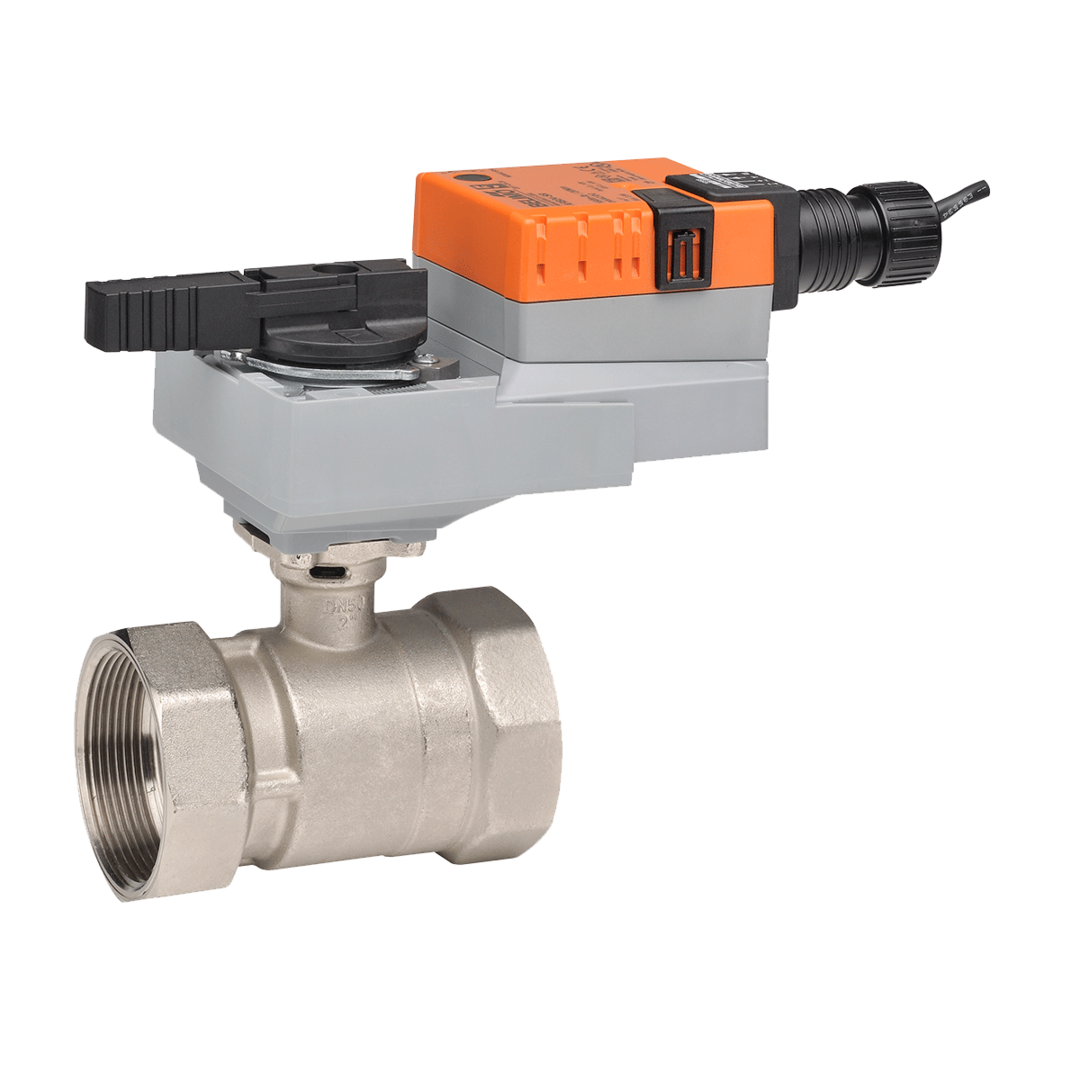

The Belimo B216+LRB24-3-S is a characterized control valve suitable for various HVAC applications. This valve features a nickel-plated brass body and a stainless steel ball and stem, ensuring durability and reliability in operation. It is designed for direct coupled actuators with a low-voltage input of 24 VAC/DC, making it an ideal choice for on/off control or floating point control.

• Direct couple actuator with floating point control
• Corrosion-resistant and robust body
• Ideal for chilled or hot water with up to 60% glycol

Product Highlights

This valve supports efficient temperature control in HVAC systems and is suitable for both commercial and residential installations.

Product Information

Standard Information

• Brand: Belimo
• MPN: B216+LRB24-3-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 16
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches
